Repair Procedures: Removal

1. Remove the air cleaner assembly.

   (Refer to Engine Mechanical System - "AIR CLEANER )

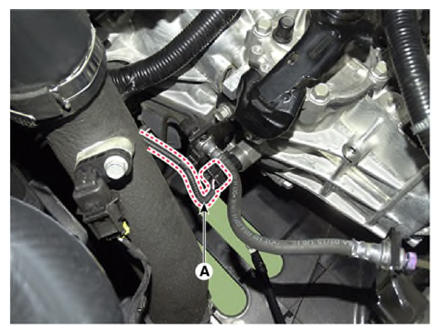

2. Disconnect the neutral switch connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

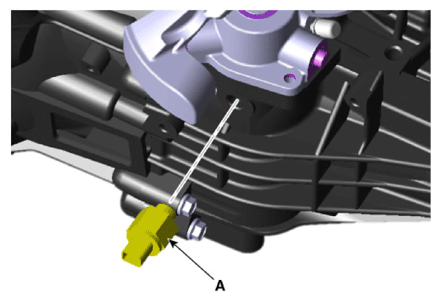

3. Remove the neutral switch (A).

Tightening torque:

39.2 - 58.9 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
