Harness Connector

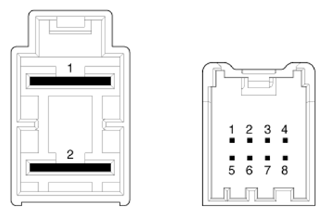

G14561683Courtesy of KIA MOTORS AMERICA, INC.
Type Pin No Description
Battery 1 Battery +
2 Battery -
VSS 1 IGN
2 -
3 -
4 -
5 -
6 -

  7 HIGH CAN
  8 LOW CAN
