Rear Power Window Motor

  1. Remove the rear door trim.

    (Refer to Body - REAR DOOR TRIM

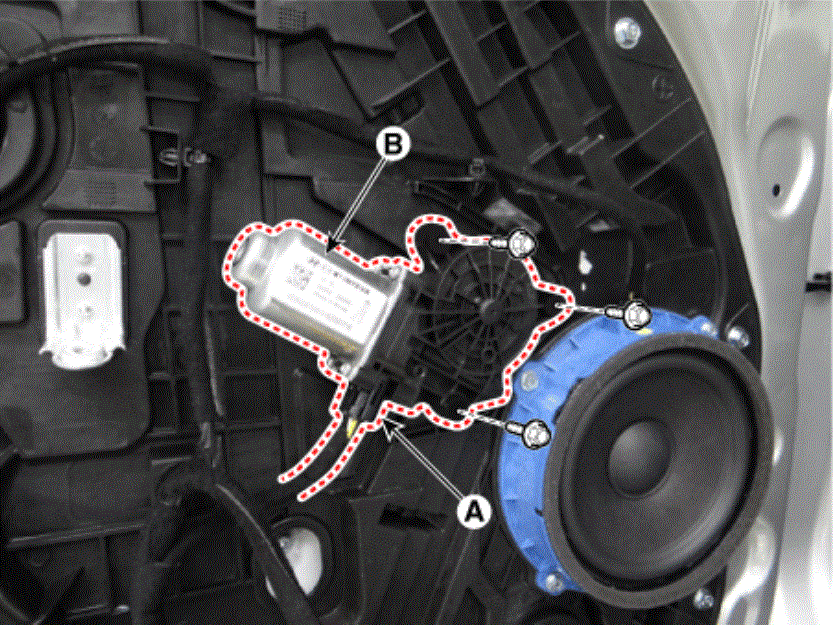

  2. After disconnecting the motor connector (A), remove the power window motor (B) by loosening the bolts.
    G00583777Courtesy of KIA MOTORS AMERICA, INC.
