Vehicle S/W Management

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.	Figures 1 to 10 below

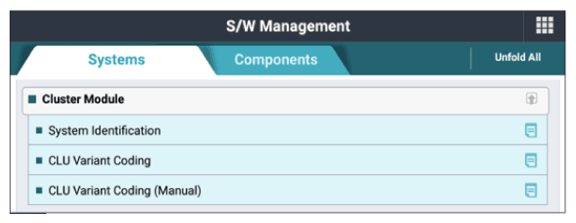

G13332911

Courtesy of KIA MOTORS AMERICA, INC.

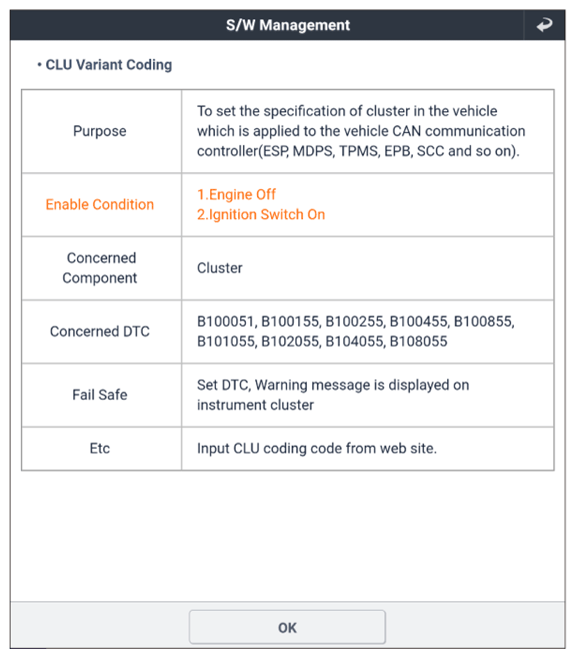

G13332912

Courtesy of KIA MOTORS AMERICA, INC.

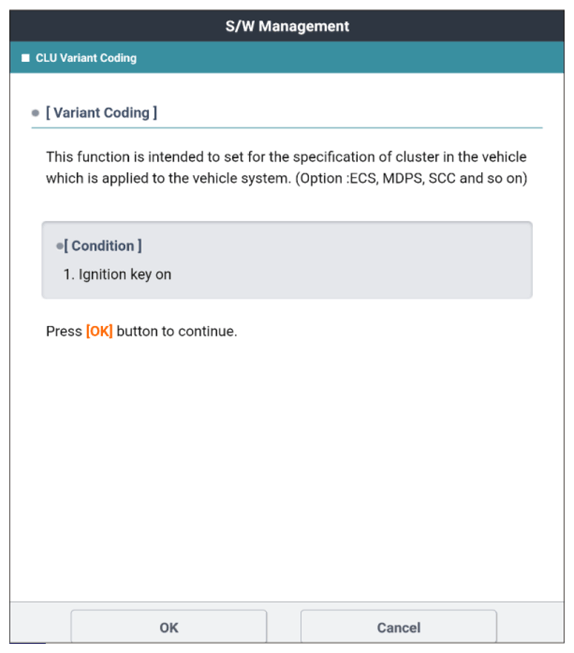

G13332913

Courtesy of KIA MOTORS AMERICA, INC.

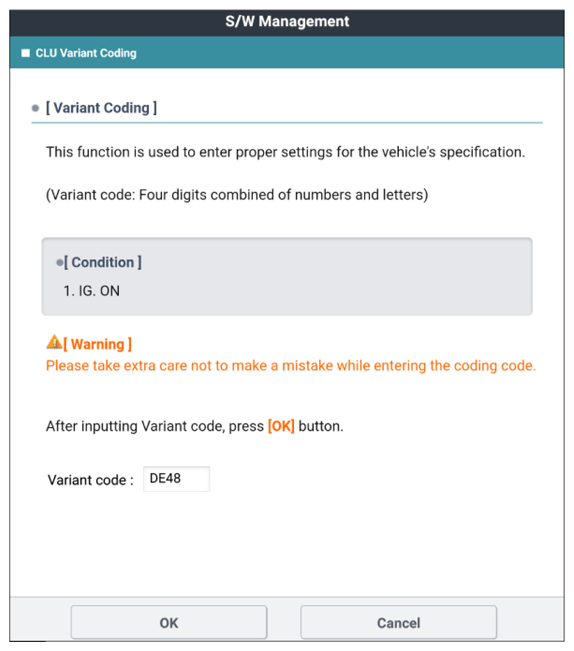

G13332914

Courtesy of KIA MOTORS AMERICA, INC.

G13332915

Courtesy of KIA MOTORS AMERICA, INC.

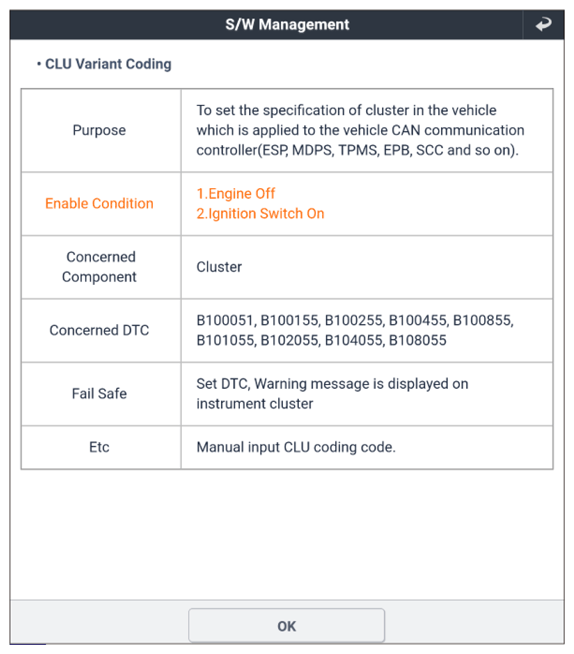

G13332916

Courtesy of KIA MOTORS AMERICA, INC.

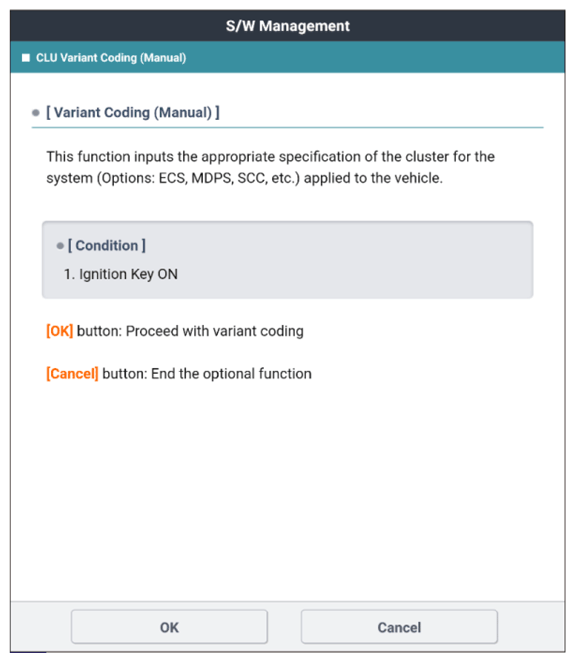

G13332917

Courtesy of KIA MOTORS AMERICA, INC.

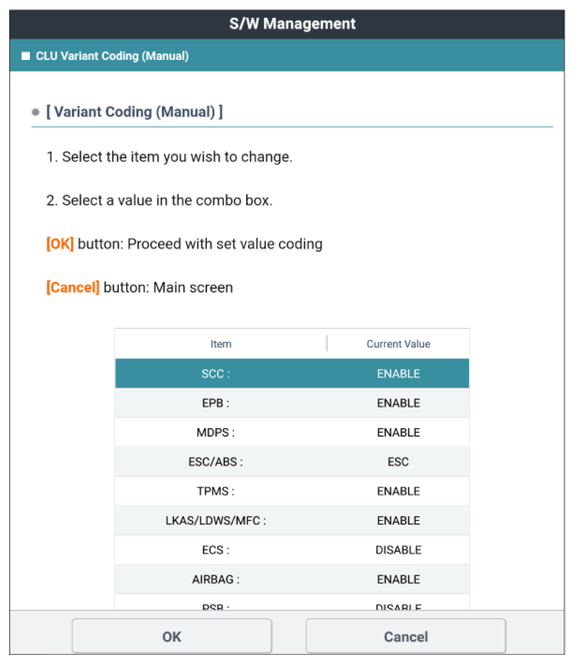

G13332918

Courtesy of KIA MOTORS AMERICA, INC.

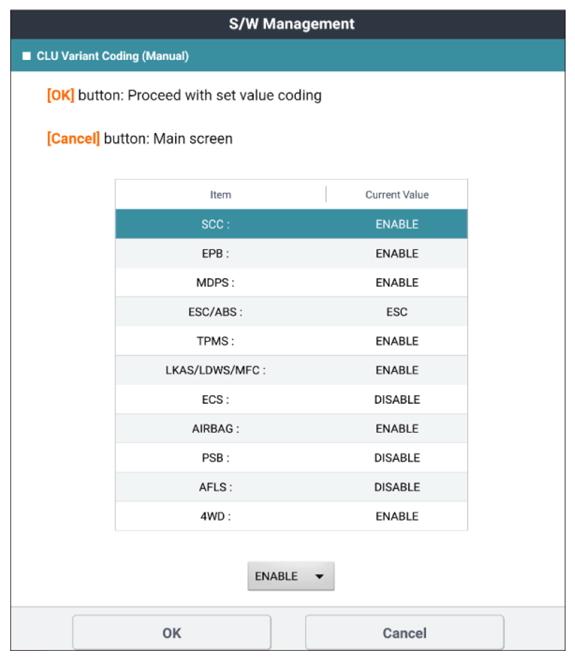

G13332919

Courtesy of KIA MOTORS AMERICA, INC.

G13332920

Courtesy of KIA MOTORS AMERICA, INC.
