Repair Procedures: Replacement

1. Remove the center pillar lower trim.

   (Refer to Interior Trim - "CENTER PILLAR TRIM ")

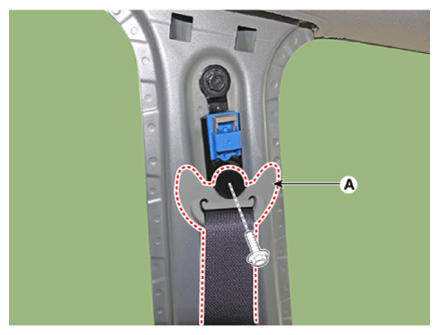

2. After loosening the front belt upper anchor mounting bolt, remove the front belt upper anchor (A).

   Tightening torque:

   39.2 - 53.9 N.m (4.0 - 5.5 Kgf.m, 28.8 - 39.8 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the seat belt (A).

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE: * Anchor seat belt separation method

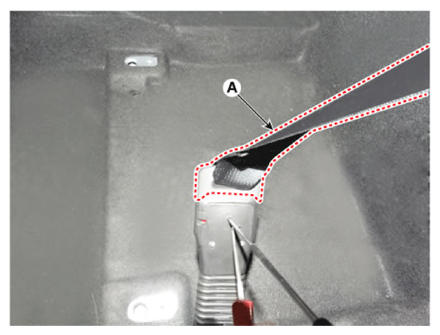

   1. Expose the red colored indicator pin (A) by pushing the slot hole using a Ø 1.5mm pointed tool as below illustration.
      CAUTION: Be careful not to scratch the anchor cover by a pointed tool when pushing the slot hole.

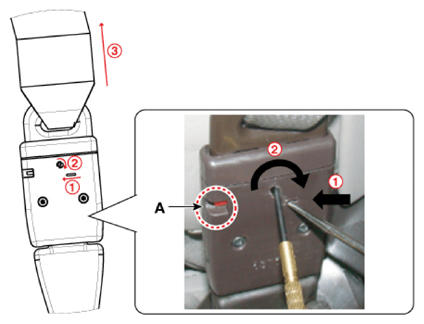

   2. Put a (-) driver (Ø4mm) into a latch hole (2) and turn it clockwise.
   3. Remove the connector by pulling seat belt (3).
      NOTE: When connecting the anchor connector, securely connect it until "click" sound is heard.

   Courtesy of KIA MOTORS AMERICA, INC.

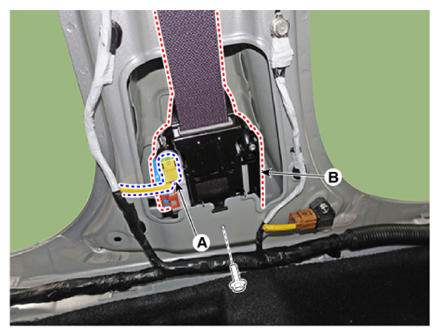

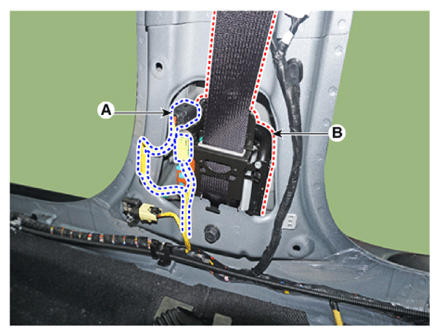

4. Disconnect the connector (A) and then remove the front seat belt pretensioner (B) after loosening the mounting bolt.

   Tightening torque:

   39.2 - 53.9 N.m (4.0 - 5.5 Kgf.m, 28.8 - 39.8 lb.ft)

   [Driver side]

   Courtesy of KIA MOTORS AMERICA, INC.

   [Passenger side]

   Courtesy of KIA MOTORS AMERICA, INC.

5. To install, reverse removal procedure.

Information

• After installing the front seat belt retractor, check that the air bag warning indicator illuminates for about 6 seconds when the ignition is ON and then goes out.
• Make sure the connector is plugged in properly.
• Replace any damaged clips (or pin-type retainers).
