Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.

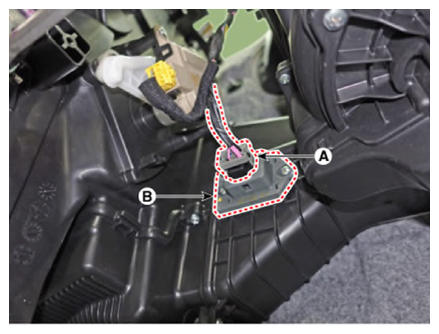

  2. Disconnect the connector (A) and then remove the power mosfet (B) after loosening the mounting screws.
    G13283073Courtesy of KIA MOTORS AMERICA, INC.
  3. To install, reverse the removal procedure.
