Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center panel.

    (Refer to Body - "CRASH PAD CENTER PANEL ")

  3. Remove the IBU unit assembly.

    (Refer to Body Electrical System - "INTEGRATED BODY CONTROL UNIT (IBU) ")

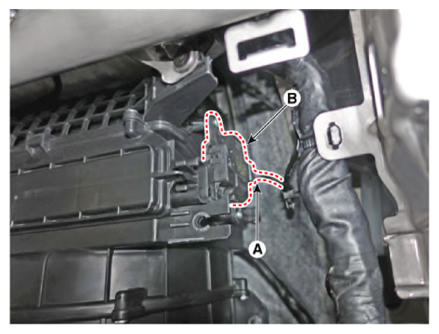

  4. Disconnect the connector (A) and then remove the intake actuator (B) after loosening the mounting screws.
    G13283081Courtesy of KIA MOTORS AMERICA, INC.
  5. To install, reverse the removal procedure.
