Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.

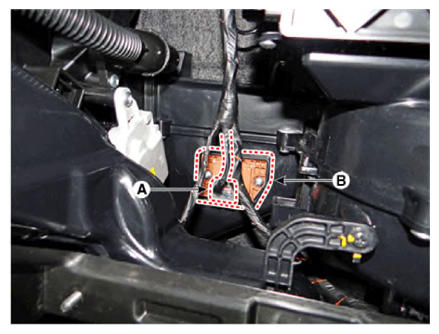

  2. Disconnect the connector (A) and then remove the blower resistor (B) after loosening the mounting screws.
    G13283071Courtesy of KIA MOTORS AMERICA, INC.
  3. To install, reverse the removal procedure.
