Fuel Delivery System - 1.6L
>>
Injector
>>
Components & Components Location
>>
Components Location
Components Location

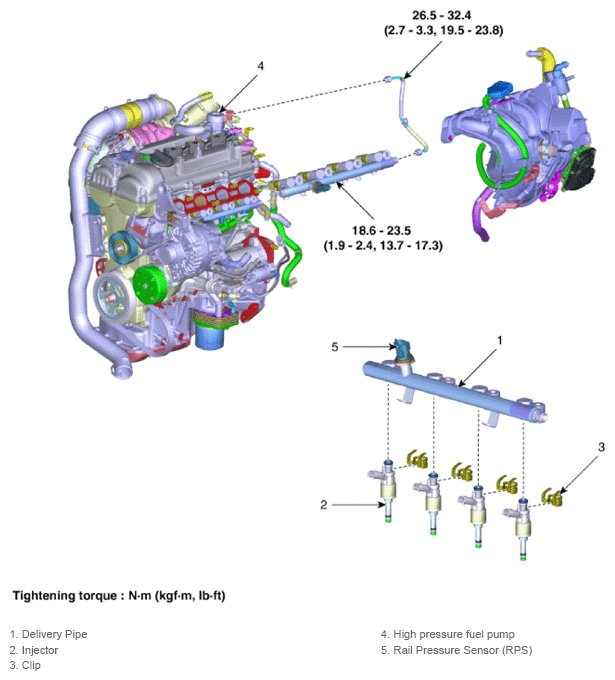

Fig 1: Injector Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
