Home >> Kia >> 2021 >> Seltos S Turbo >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System - 1.6L >> Alternator >> Components & Components Location >> Components

Components & Components Location: Components

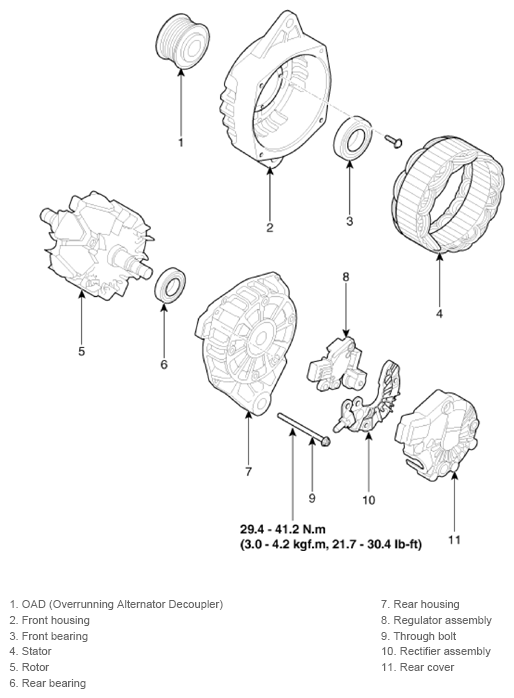

Fig 1: Alternator Components Location With Torque Specification

G13480447

Courtesy of KIA MOTORS AMERICA, INC.
