Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

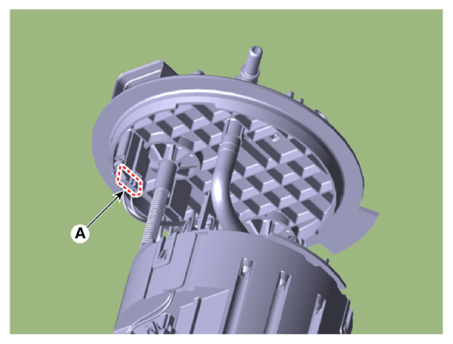

  2. Disconnect the fuel sender connector (A).
    G13483139Courtesy of KIA MOTORS AMERICA, INC.

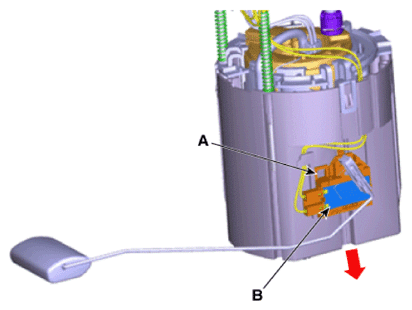

  3. Remove the fuel sender (B) in the direction of arrow after releasing the fixing hook (A).
    G13483140Courtesy of KIA MOTORS AMERICA, INC.
    G13483141Courtesy of KIA MOTORS AMERICA, INC.
