Components & Components Location: Components

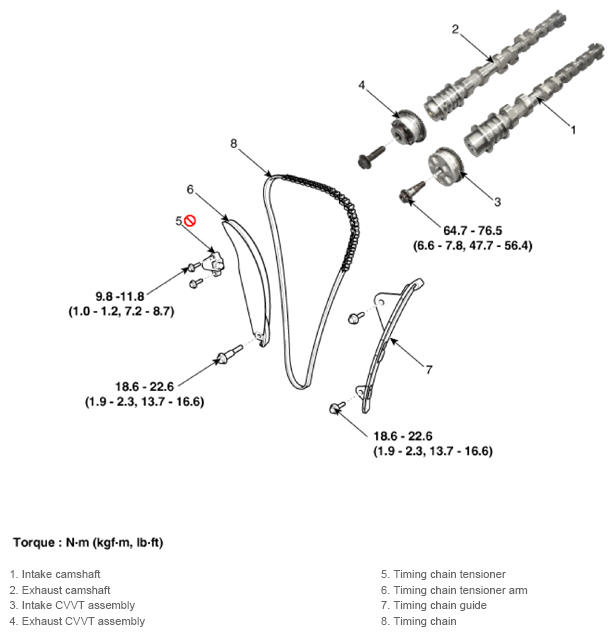

Fig 1: Timing Chain Components Location With Torque Specification

G13482815

Courtesy of KIA MOTORS AMERICA, INC.
