Circuit Diagram

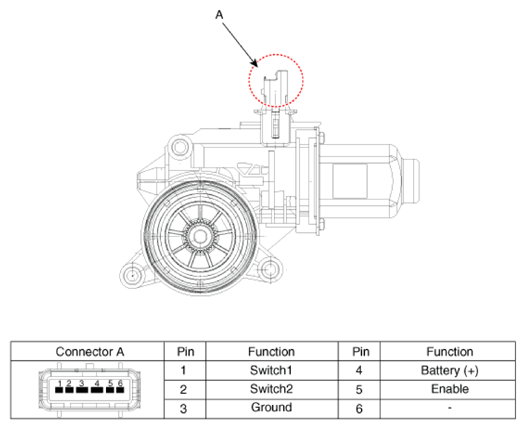

[Safety Window Motor]

G13486925

Courtesy of KIA MOTORS AMERICA, INC.

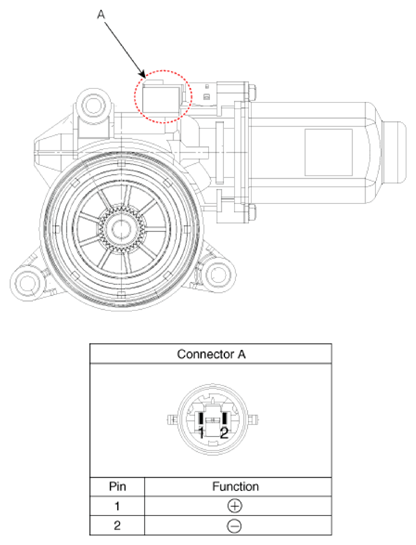

[Standard Window Motor]

G13486926

Courtesy of KIA MOTORS AMERICA, INC.
