Home >> Kia >> 2021 >> Niro LX >> Repair and Diagnosis >> Hybrid/Electric Powertrain >> Electric Converters and Controllers >> Hybrid Control System (HEV) >> Hybrid Power Control Unit (HPCU) >> Components And Components Location >> Components

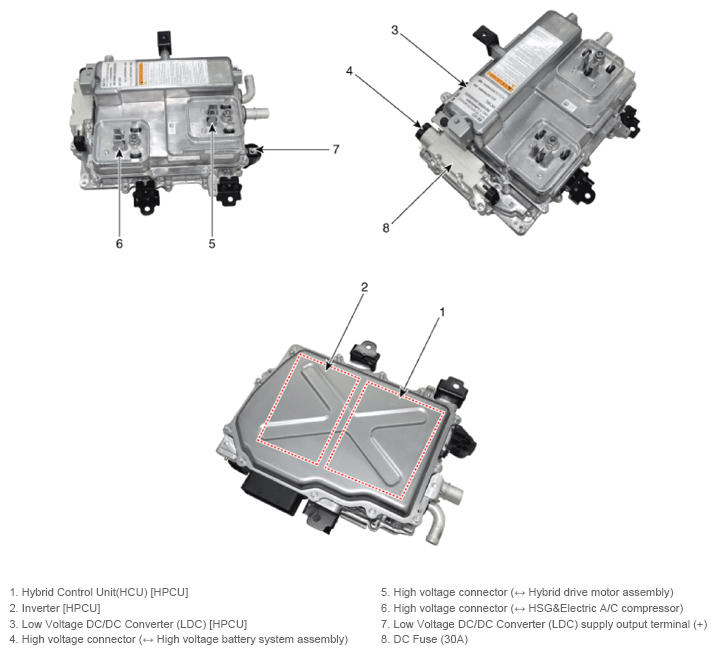

Components And Components Location: Components

G13439762

Courtesy of KIA MOTORS AMERICA, INC.
