Components And Components Location: Component

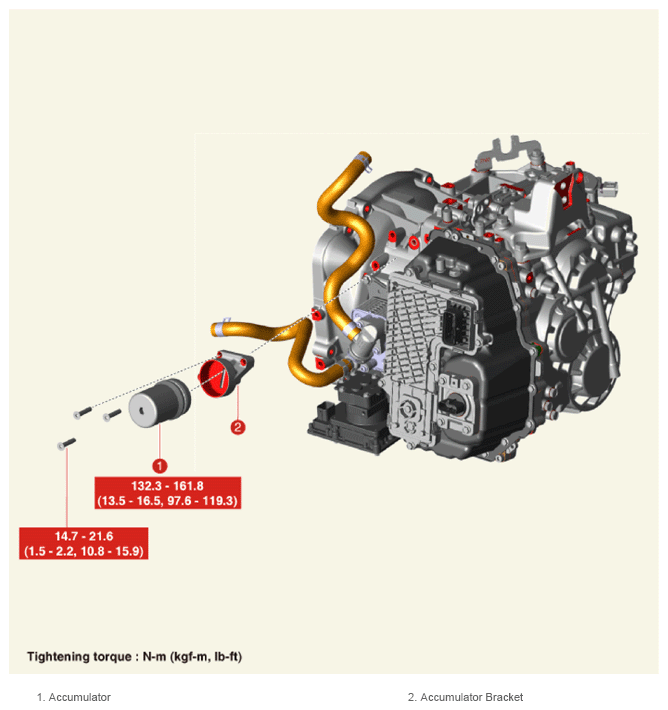

Fig 1: Accumulator Components Location With Torque Specification

G13837809

Courtesy of KIA MOTORS AMERICA, INC.
