Components And Components Location: Components

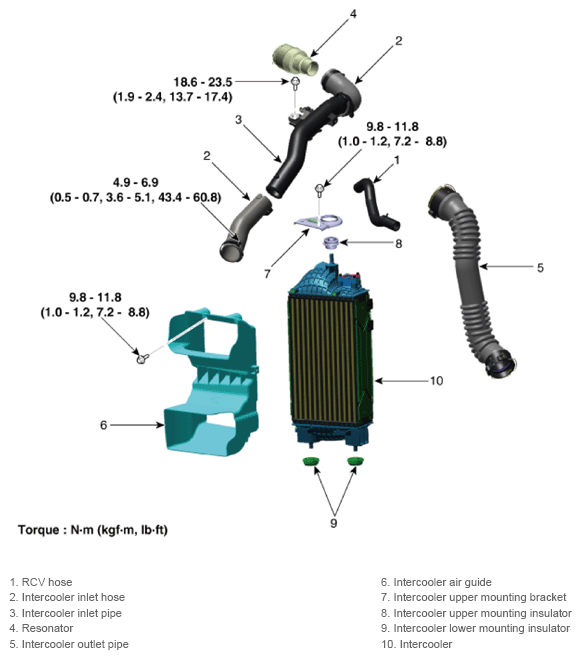

Fig 1: Intercooler Components Location With Torque Specification

G13837041

Courtesy of KIA MOTORS AMERICA, INC.
