Repair Procedures: Removal

Disconnect the battery negative (-) terminal.
Remove the drive belt.
(Refer to " Removal ")
Remove the vacuum pump.
(Refer to " Removal ")

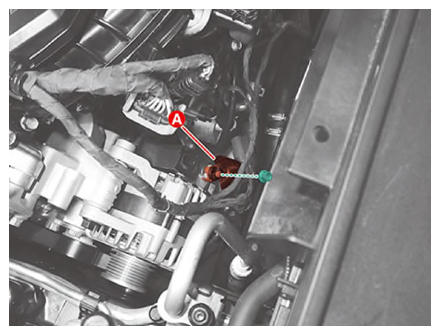

Disconnect the alternator connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

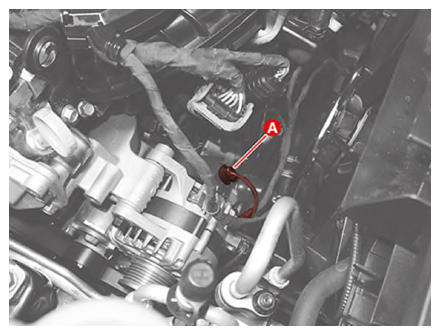

Remove the B terminal (A) from the alternator after removing the mounting nut.
Tightening torque:

9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

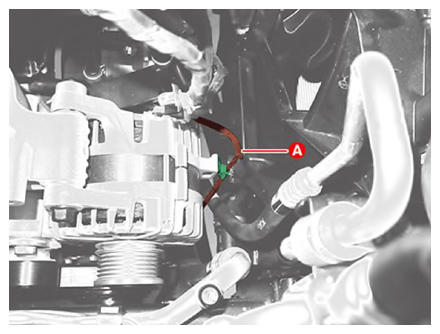

Separate the alternator wiring (A) from the alternator after removing the clip.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front wheel guard.
(Refer to " Replacement ")

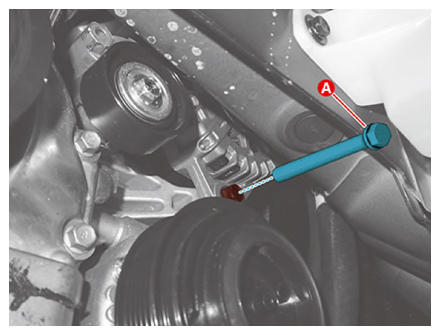

Remove the alternator lower mounting bolt (A).
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

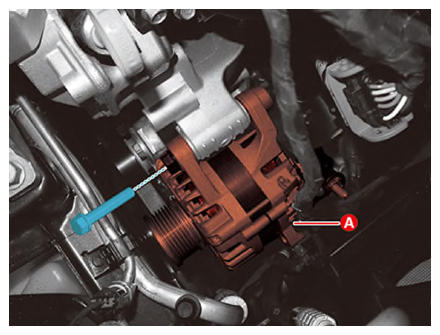

Remove the alternator after removing the alternator upper mounting bolt (A).
Tightening torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
