Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • Check the cleanliness of the pressure sensor before installation.

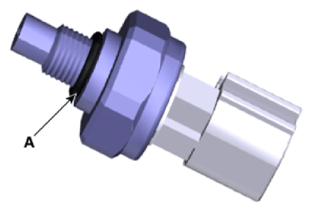

  • Check the pressure sensor O-ring (A).
G13834543Courtesy of KIA MOTORS AMERICA, INC.
  1. Install in the reverse order of removal.
