Components And Components Location: Components

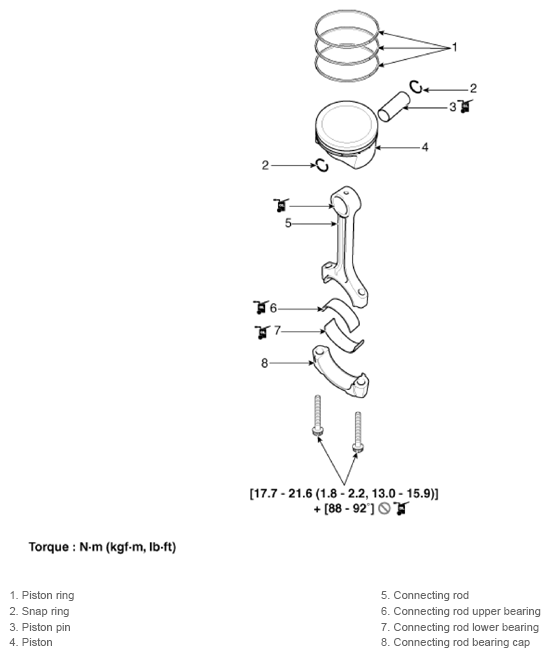

Fig 1: Piston And Connecting Rod Components With Torque Specifications

G13306580

Courtesy of KIA MOTORS AMERICA, INC.
