Inspection After Installing TPMS Sensor
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

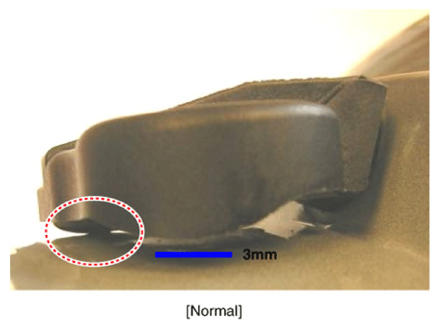

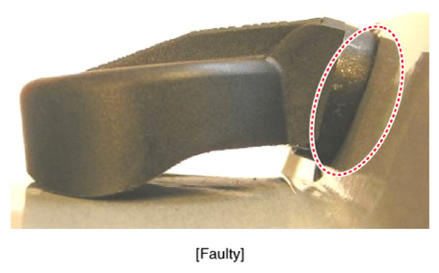

- Seal washer must be compressed on the outer surface of rim hole.
- The lower part of the valve must locate in the set position (within metal bracket) of the housing.
- One or more points of the housing must be contacting the surface of the rim.
- The mounting height of the housing must not exceed the sill of the rim.
