- Function
- By detecting the pressure, temperature, acceleration, and battery condition, transmit information to ECU by a wireless RF.
- Wheel location is recognized by comparing the Wheel Pulse of ECS (ABS) and acceleration values of the sensor (High Line).

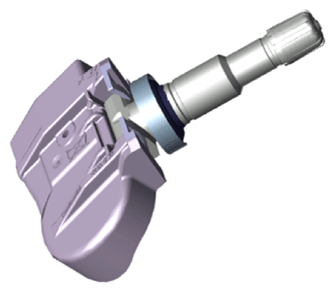

- Structure and features
- There are four (4) sensors mounted in each wheel of the vehicle.
- Frequency conversion type is FSK, and High Line is used in common.
