Variant Coding (In Case HECU Is Replaced With New One)

Ignition switch "OFF"
Connect KDS to Data Link Connector (DLC).
Ignition switch "ON"
Select "Vehicle S/W management" on KDS.

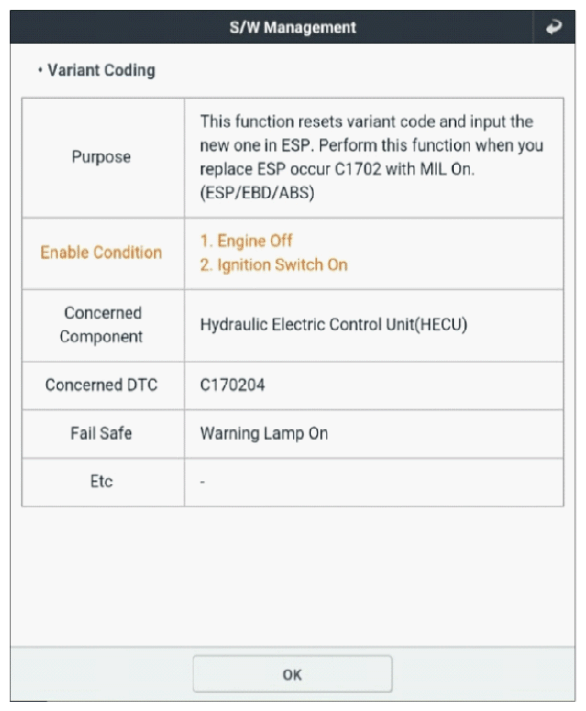

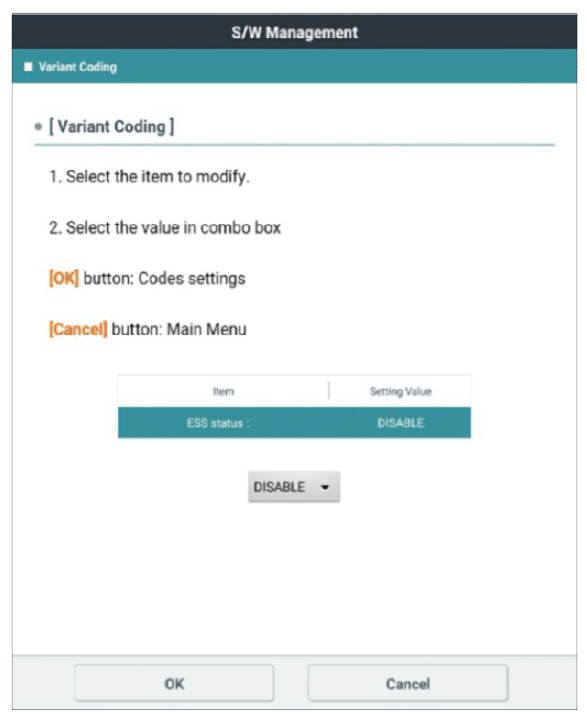

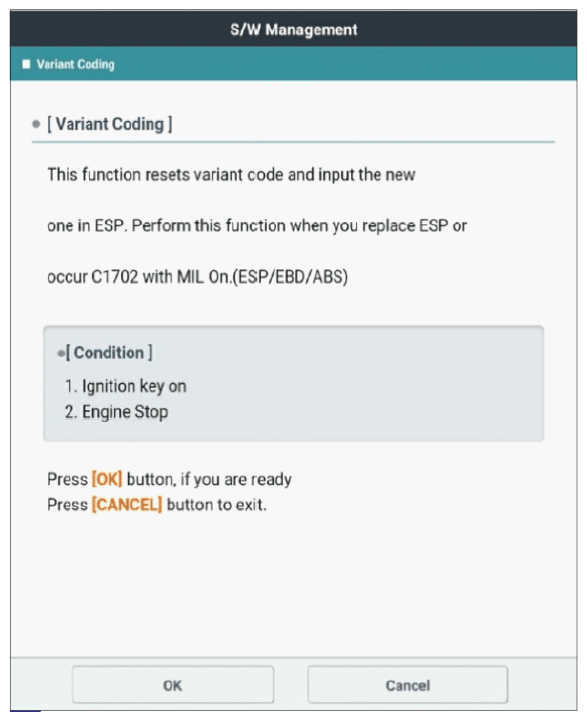

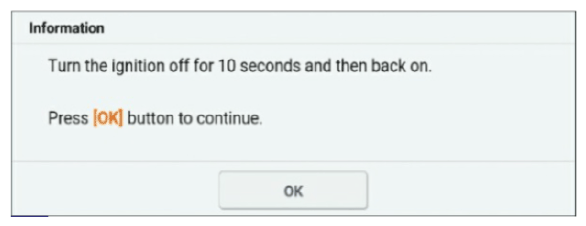

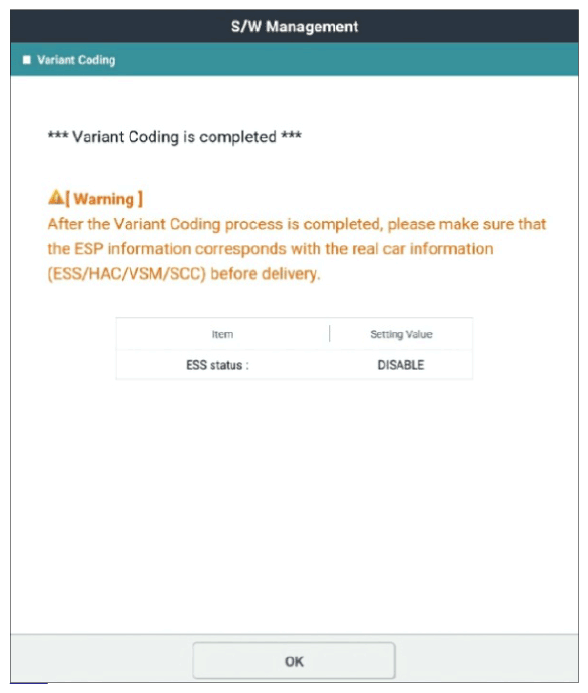

Perform "Variant Coding" in "Vehicle S/W management" with KDS.
* Before performing the variant coding function, ESP coding code is required from GSW site.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
