Removal And Installation

Disconnect the battery negative terminal.
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Drain the engine oil.
(Refer to Lubrication System - "ENGINE OIL ")

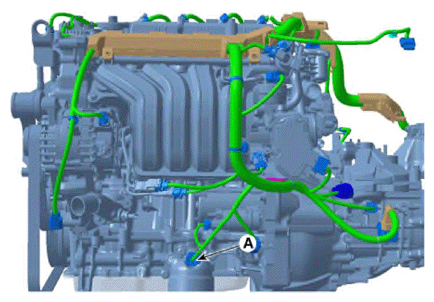

Disconnect the oil pressure switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

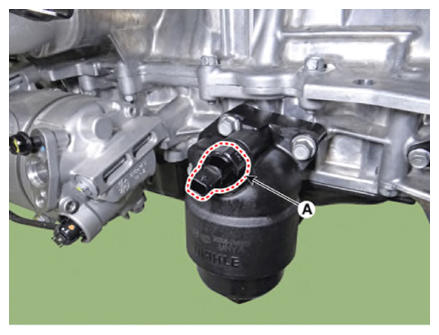

Remove the oil pressure switch (A).
Tightening torque:

14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.8 - 15.9 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

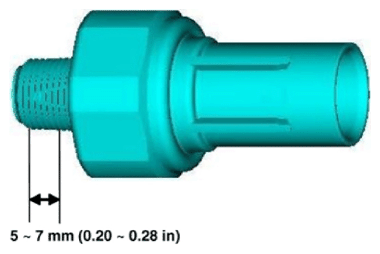

NOTE: When installing the oil pressure switch, apply seal lock to the thread.
Seal lock: THREE BOND 2403
Thickness: 0.2 - 0.4 mm (0.008 - 0.016 in)

Courtesy of KIA MOTORS AMERICA, INC.
