Home >> Kia >> 2020 >> Rio LX >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Audio System >> Audio Remote Control >> Schematic Diagrams >> Circuit Diagram >> Notes

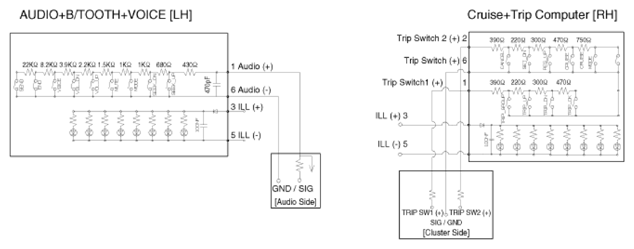

Circuit Diagram: Notes

G13413921

Courtesy of KIA MOTORS AMERICA, INC.
