Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS/GDS.
 Fig.1 to 2
Fig.3 to 5
CAUTION: Using KDS/GDS performs the "Vehicle S/W Management" → "CLU Variant Coding" item.
The DTC is erased when programming is properly performed.

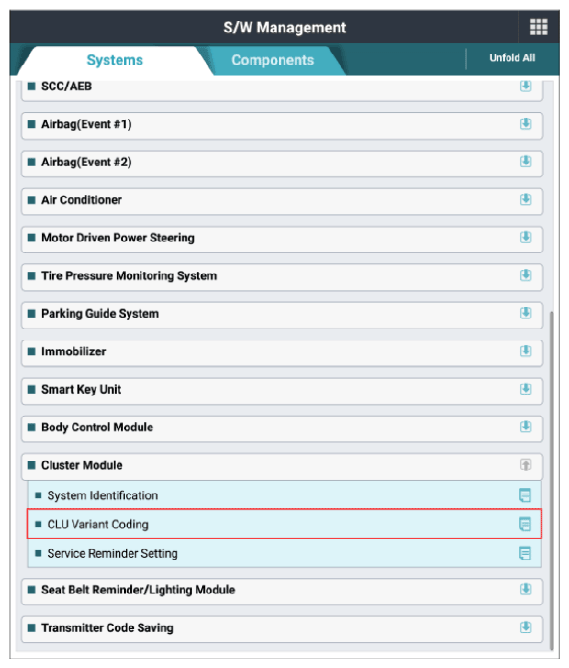

G13414038Courtesy of KIA MOTORS AMERICA, INC.

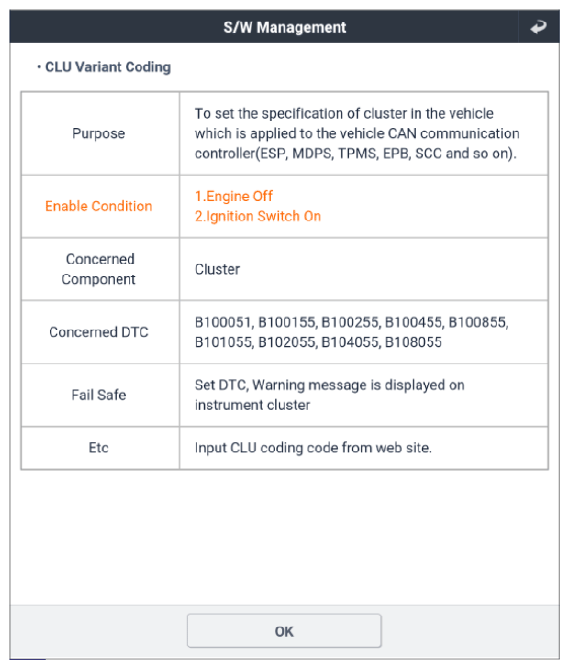

G13414039Courtesy of KIA MOTORS AMERICA, INC.

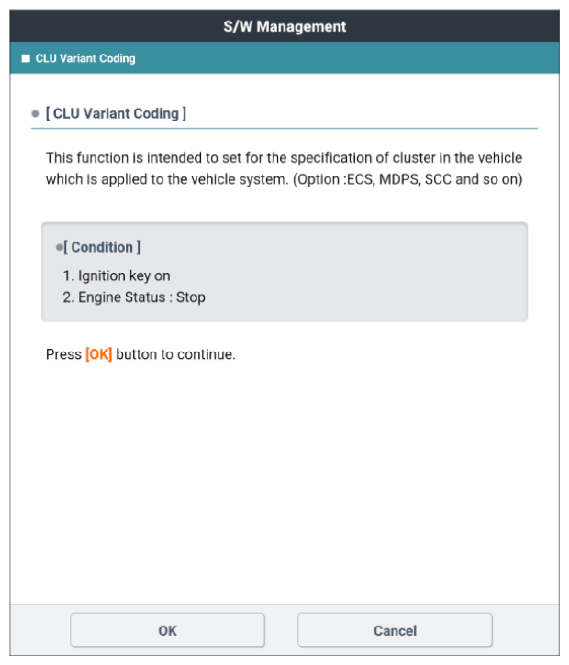

G13414040Courtesy of KIA MOTORS AMERICA, INC.

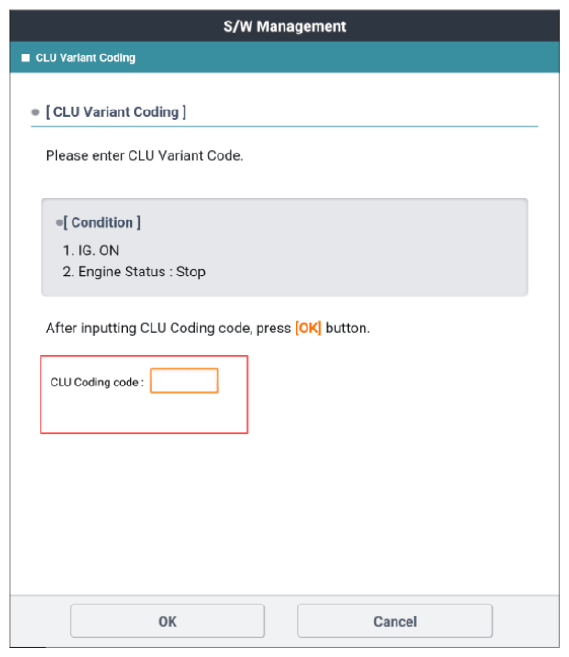

G13414041Courtesy of KIA MOTORS AMERICA, INC.

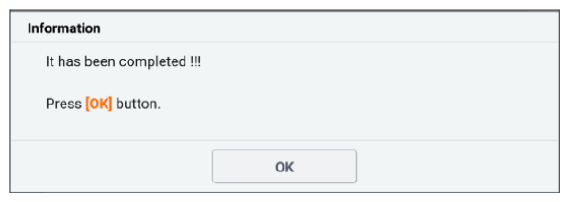

G13414042Courtesy of KIA MOTORS AMERICA, INC.

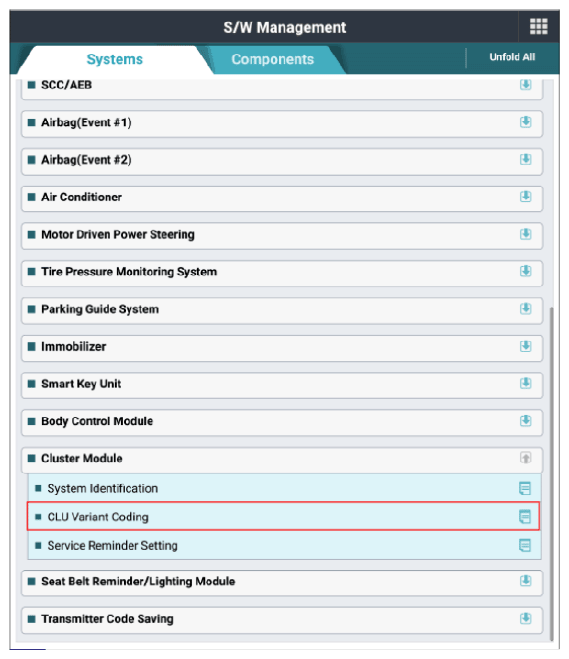

G13414043Courtesy of KIA MOTORS AMERICA, INC.

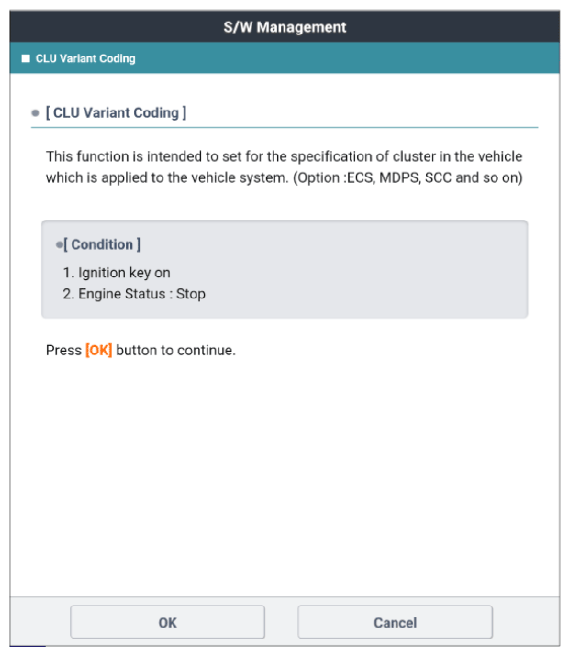

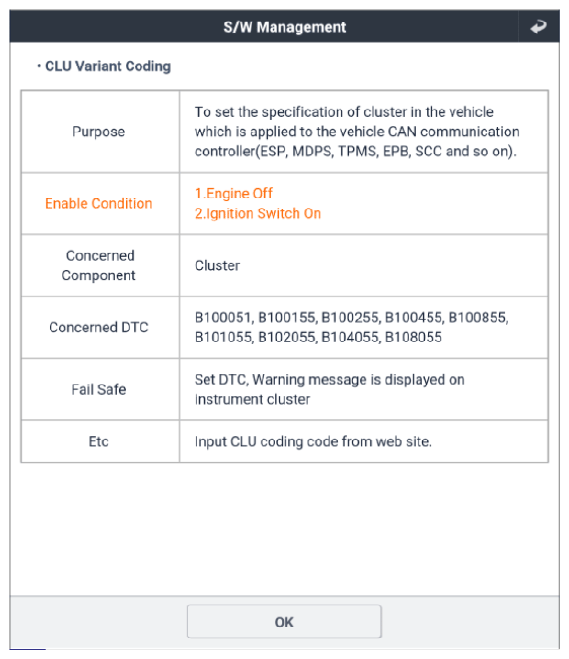

G13414044Courtesy of KIA MOTORS AMERICA, INC.

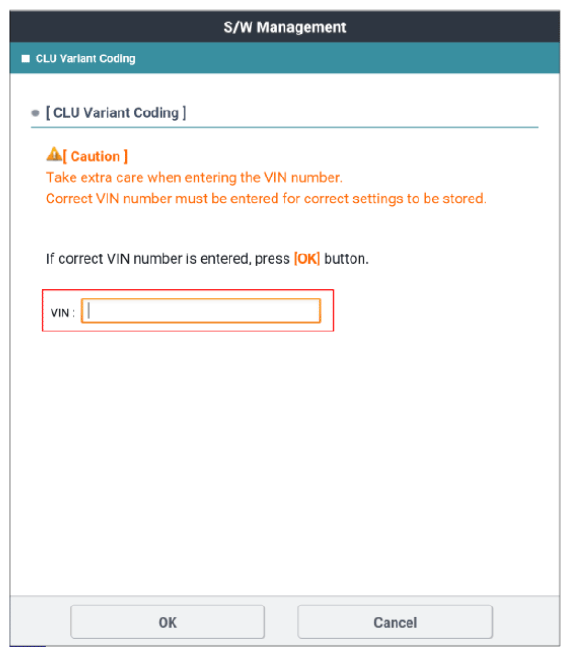

G13414045Courtesy of KIA MOTORS AMERICA, INC.

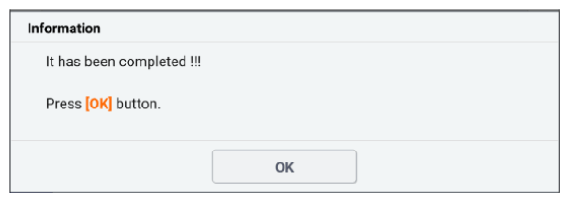

G13414046Courtesy of KIA MOTORS AMERICA, INC.
G13414047Courtesy of KIA MOTORS AMERICA, INC.
