Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS/GDS.

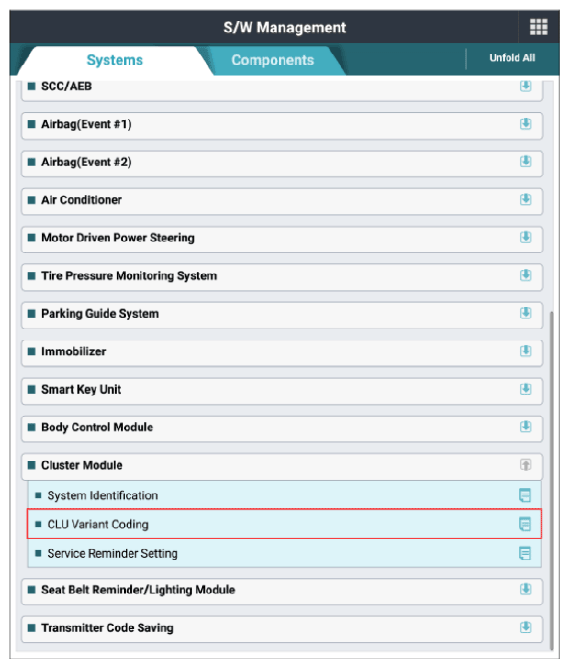

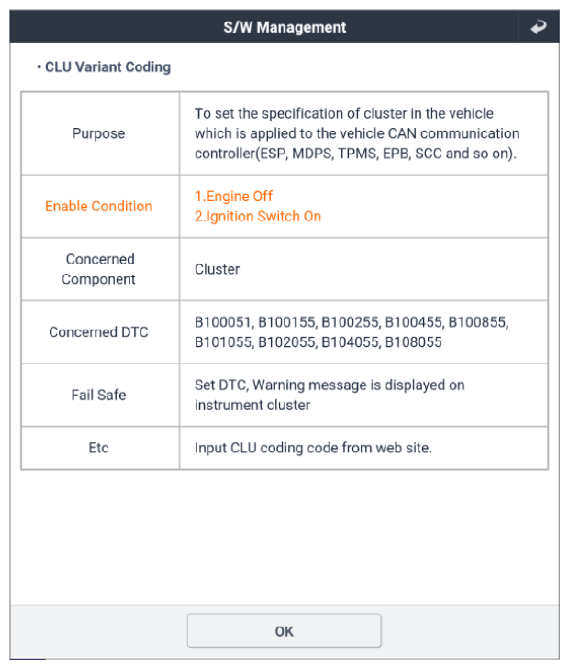

 Fig.1 to 2
Fig.3 to 5
CAUTION: Using KDS/GDS performs the "Vehicle S/W Management" → "CLU Variant Coding" item.
The DTC is erased when programming is properly performed.
G13413982Courtesy of KIA MOTORS AMERICA, INC.
G13413983Courtesy of KIA MOTORS AMERICA, INC.

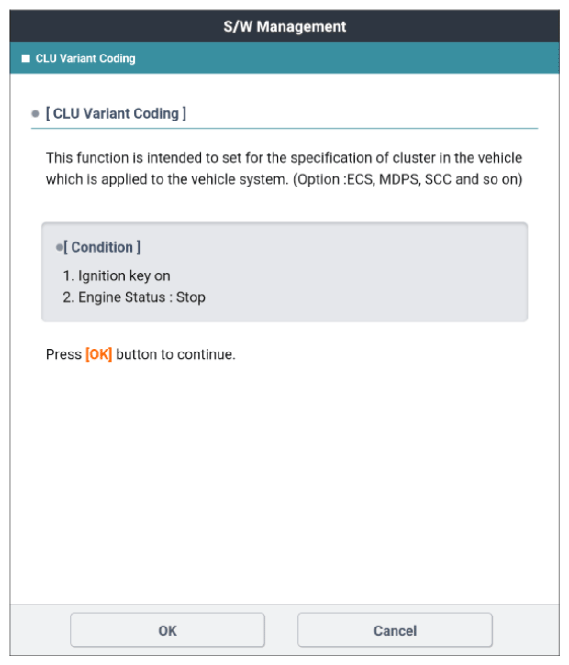

G13413984Courtesy of KIA MOTORS AMERICA, INC.

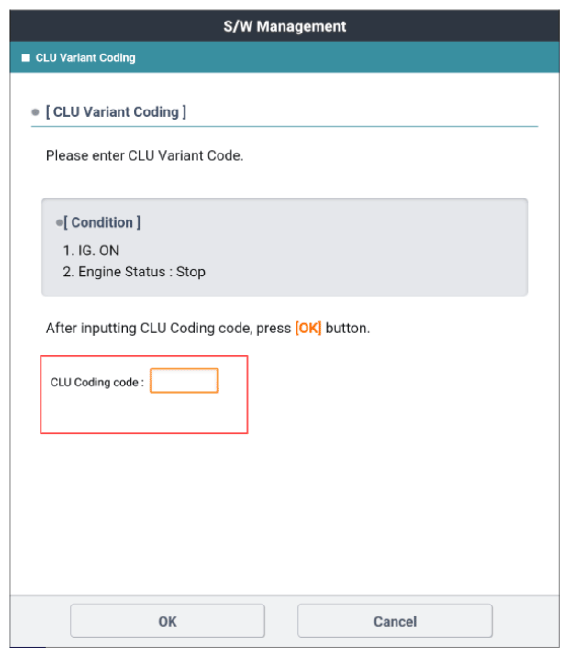

G13413985Courtesy of KIA MOTORS AMERICA, INC.

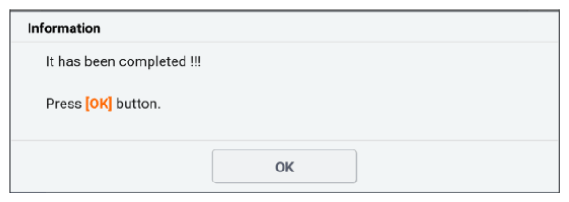

G13413986Courtesy of KIA MOTORS AMERICA, INC.

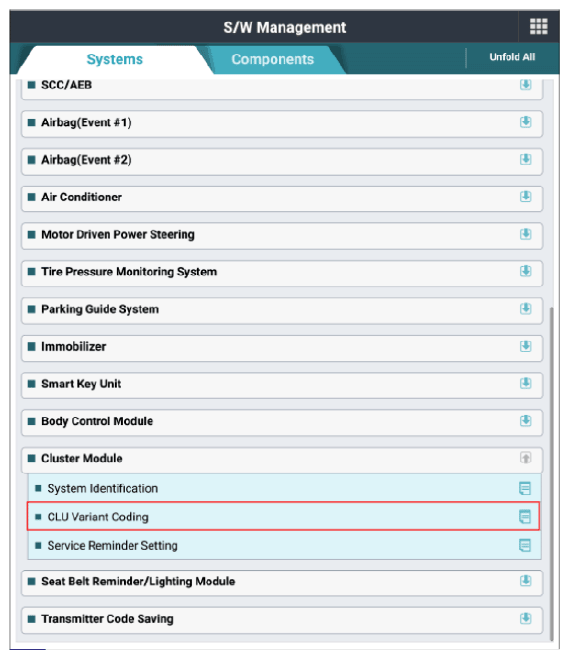

G13413987Courtesy of KIA MOTORS AMERICA, INC.

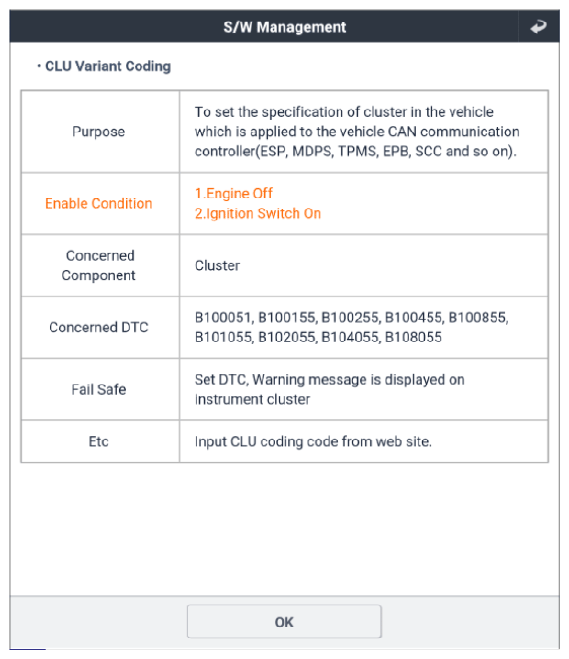

G13413988Courtesy of KIA MOTORS AMERICA, INC.

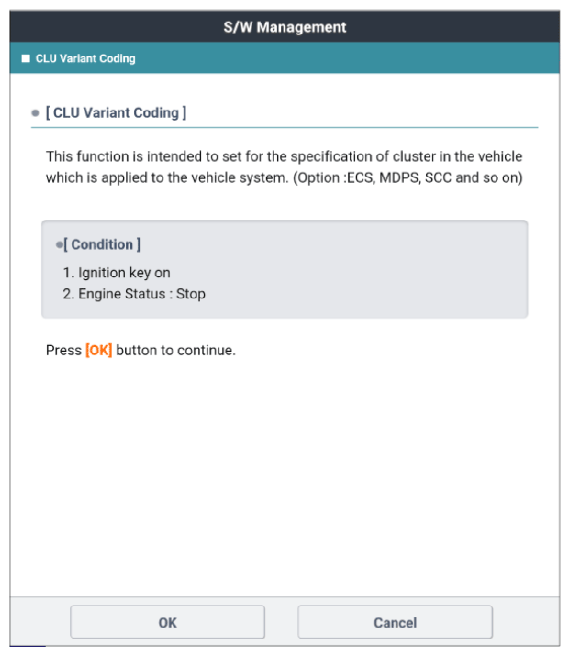

G13413989Courtesy of KIA MOTORS AMERICA, INC.

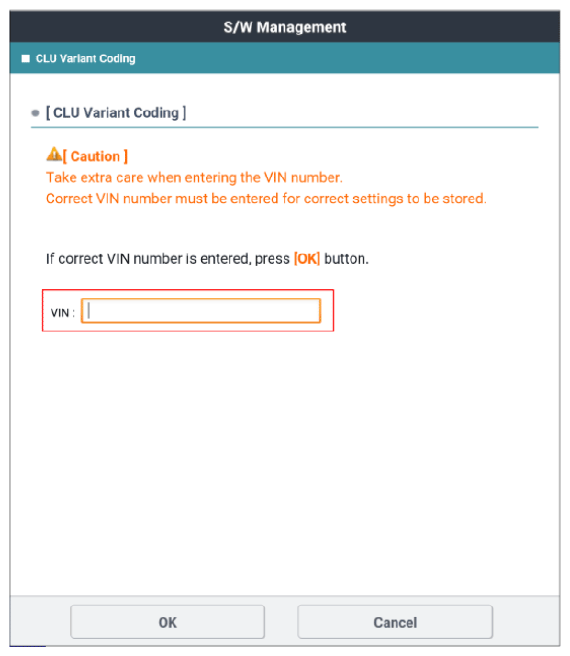

G13413990Courtesy of KIA MOTORS AMERICA, INC.

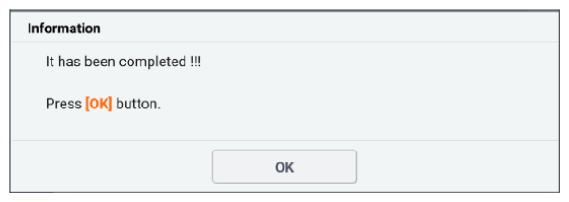

G13413991Courtesy of KIA MOTORS AMERICA, INC.
