Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS/GDS.
 Fig.1 to 2
Fig.3 to 5
CAUTION: Using KDS/GDS performs the "Vehicle S/W Management" → "CLU Variant Coding" item.
The DTC is erased when programming is properly performed.

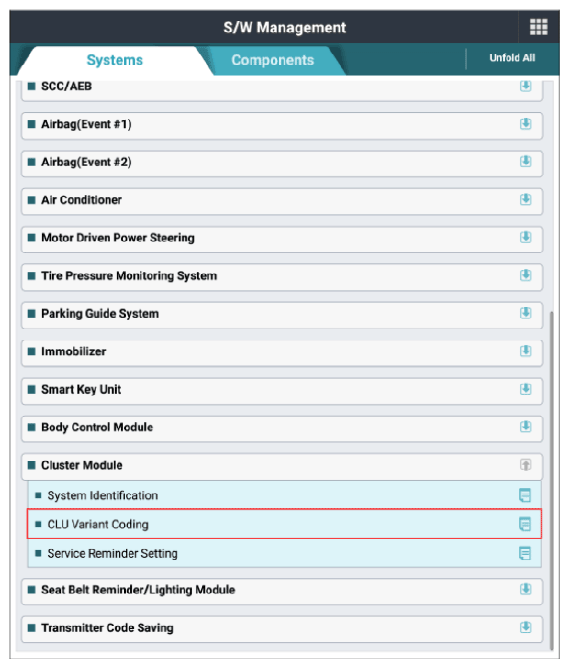

G13413954Courtesy of KIA MOTORS AMERICA, INC.

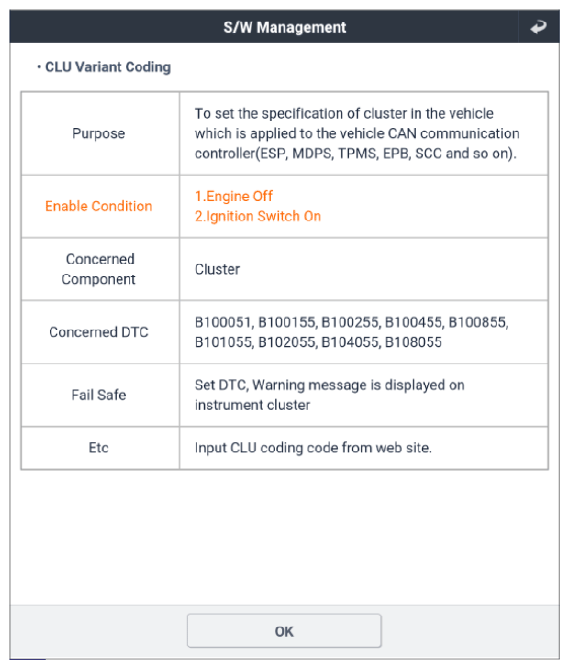

G13413955Courtesy of KIA MOTORS AMERICA, INC.

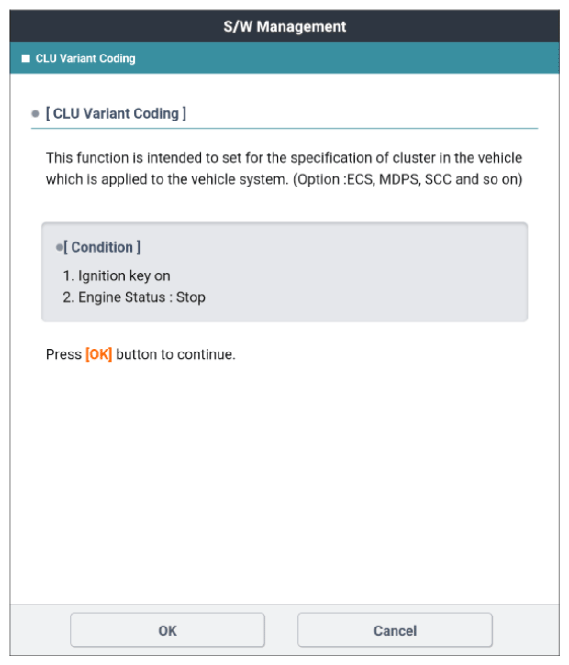

G13413956Courtesy of KIA MOTORS AMERICA, INC.

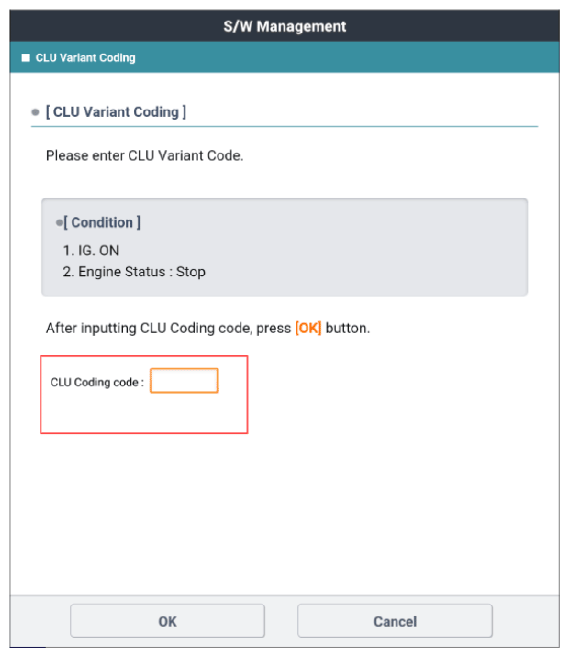

G13413957Courtesy of KIA MOTORS AMERICA, INC.

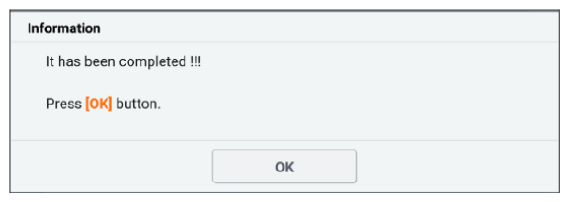

G13413958Courtesy of KIA MOTORS AMERICA, INC.

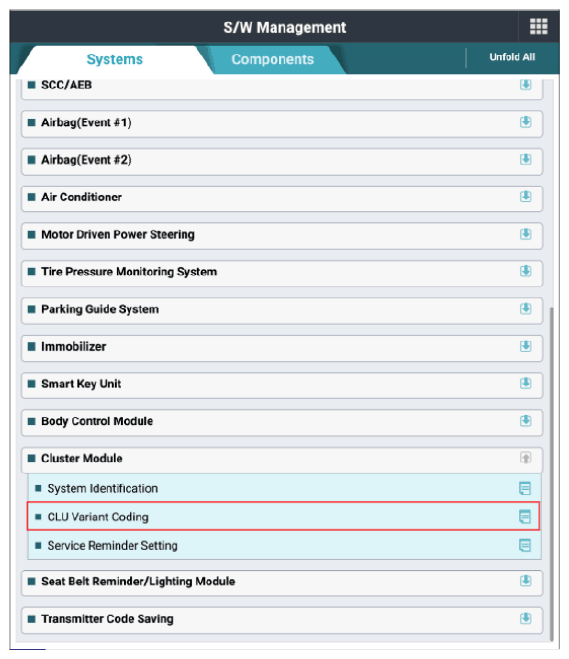

G13413959Courtesy of KIA MOTORS AMERICA, INC.

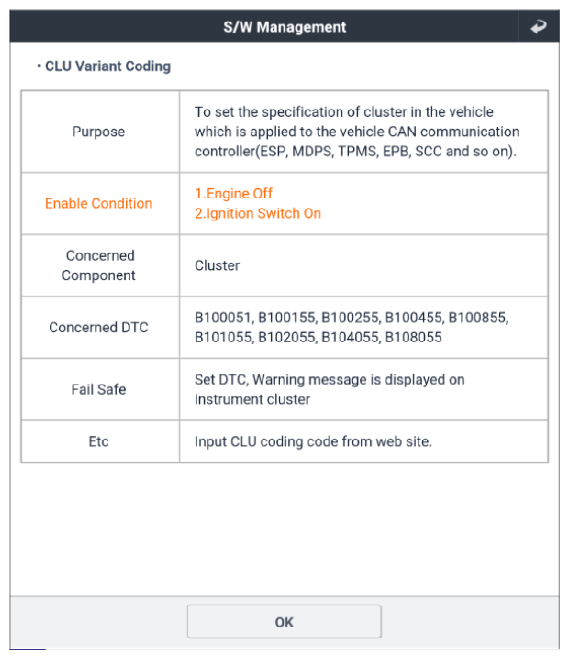

G13413960Courtesy of KIA MOTORS AMERICA, INC.

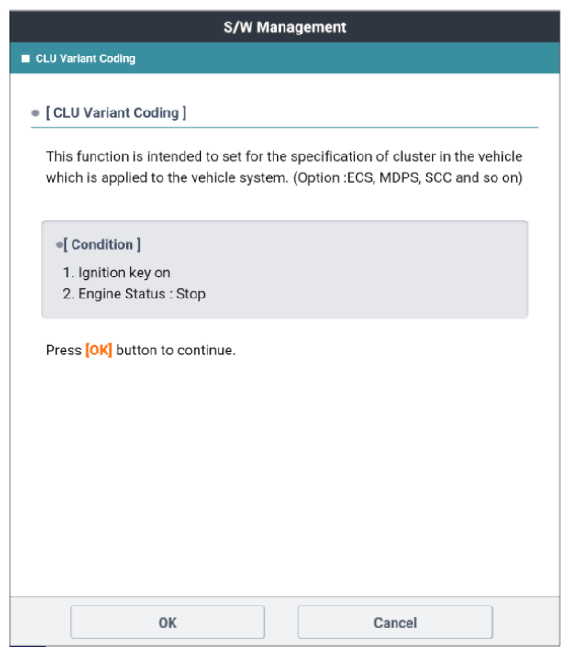

G13413961Courtesy of KIA MOTORS AMERICA, INC.

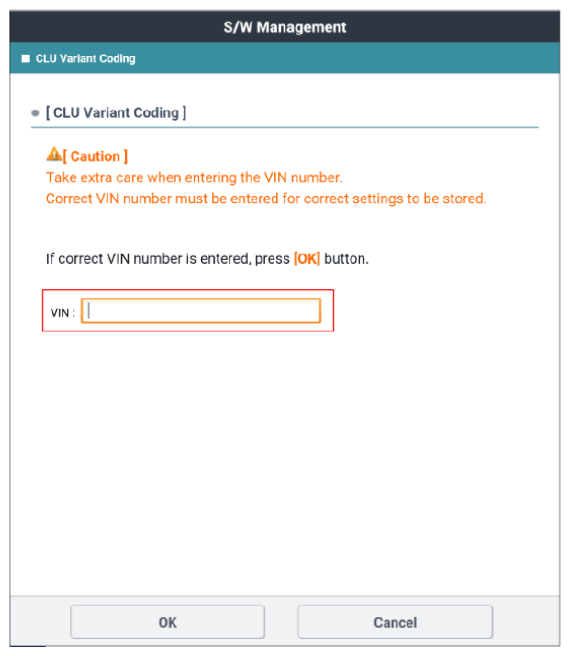

G13413962Courtesy of KIA MOTORS AMERICA, INC.

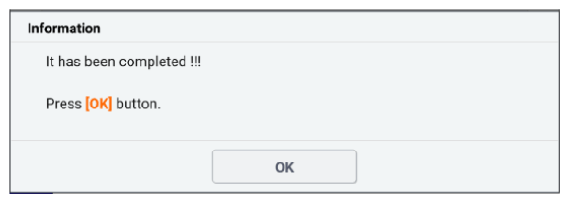

G13413963Courtesy of KIA MOTORS AMERICA, INC.
