Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
 Fig.1 to 4

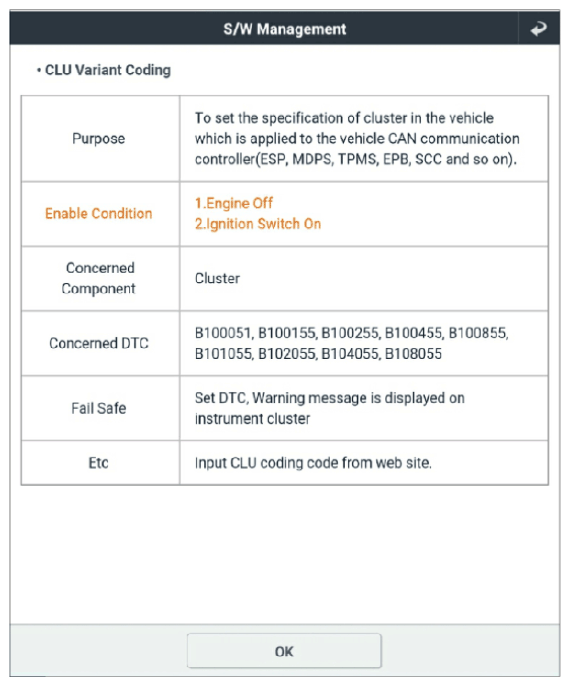

G13132290Courtesy of KIA MOTORS AMERICA, INC.

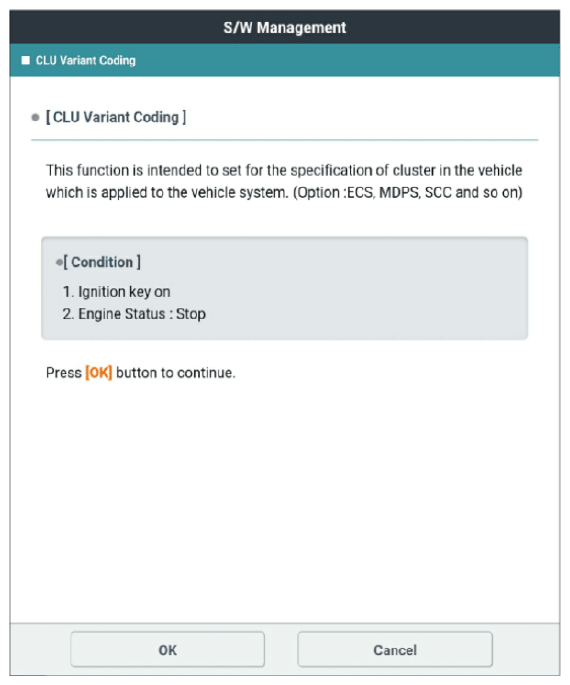

G13132291Courtesy of KIA MOTORS AMERICA, INC.

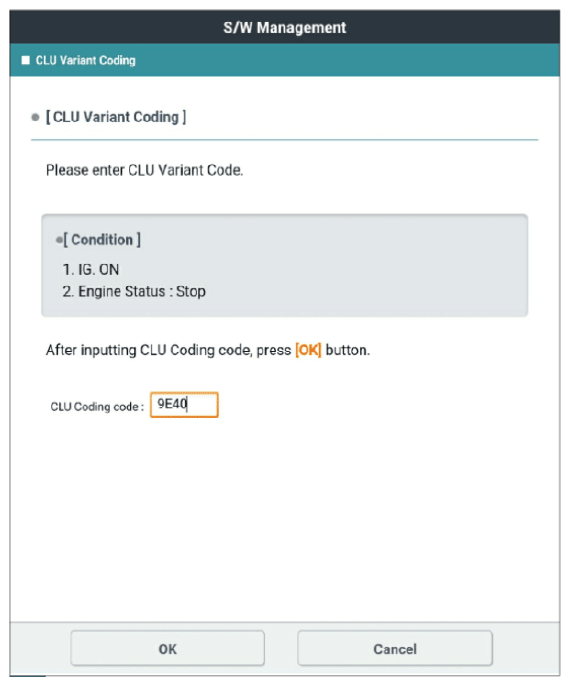

G13132292Courtesy of KIA MOTORS AMERICA, INC.

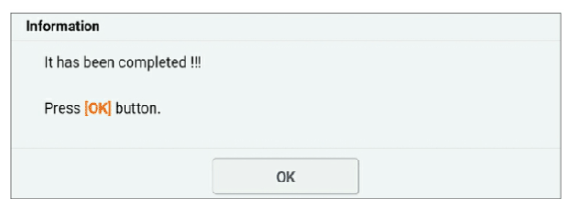

G13132293Courtesy of KIA MOTORS AMERICA, INC.
