Repair Procedures: Inspection
WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

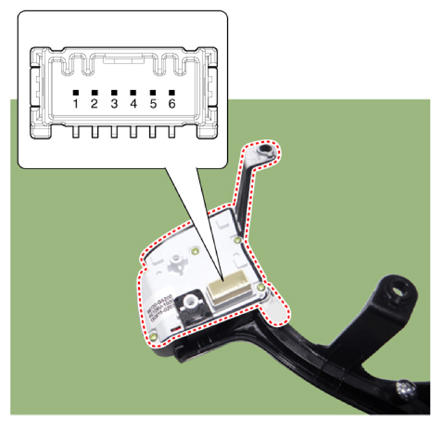

- Check for resistance between terminals in each switch position (RH).
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Switch |
Connector terminal |
Resistance (±3%) |
| Cancel |
2-6 |
390 Ω |
| SET - |
610 Ω |
| RES + |
910 Ω |
| Cruise ON/OFF |
1.38 kΩ |
| SCC (Following distance control) |
3.63 kΩ |
