Special Service Tools

Tool Name/Number Illustration Description

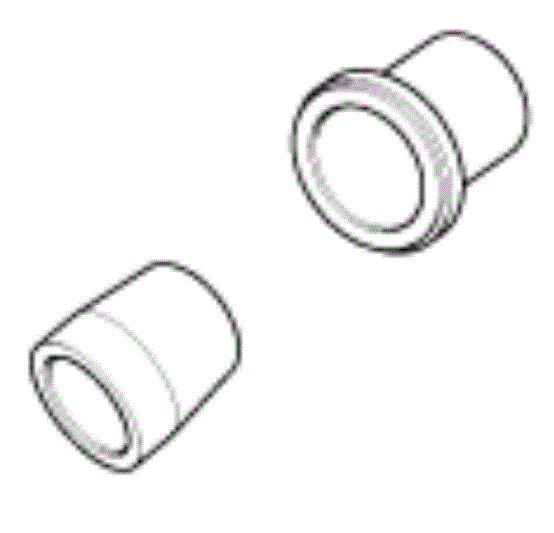

Crankshaft front oil seal installer
09231-3C100
G13402692Courtesy of KIA MOTORS AMERICA, INC.
 Used for installing crankshaft front oil seal
Ring gear stopper
  1. 09231-3N100
  2. 09231-2B100
G13402693Courtesy of KIA MOTORS AMERICA, INC.
 Used for keeping ring gear from rotating when removing/installing crankshaft pulley bolt
Ring gear stopper
  1. 09231-3D100
  2. 09231-2W100
G13402694Courtesy of KIA MOTORS AMERICA, INC.
 Used for keeping ring gear from rotating when removing/installing crankshaft pulley bolt

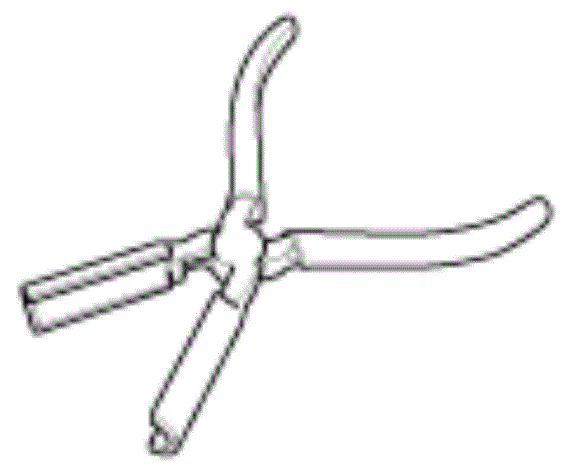

Valve stem seal remover
09222-29000
G13402695Courtesy of KIA MOTORS AMERICA, INC.
 Used for removing valve stem seal
Valve stem seal installer
09222-2W100
G13402696Courtesy of KIA MOTORS AMERICA, INC.
 Used for installing valve stem seal
Valve spring compressor & holder
  1. 09222-3K000
  2. 09222-3K100
G13402697Courtesy of KIA MOTORS AMERICA, INC.
 Used for removing/installing intake or exhaust valve
Crankshaft rear oil seal installer
  1. 0K231-J5100
  2. 09231-H1100
G13402698Courtesy of KIA MOTORS AMERICA, INC.
 Used for installing crankshaft rear oil seal

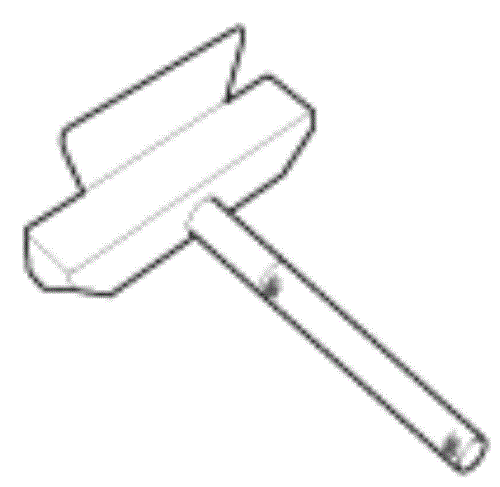

Oil pan remover
09215-3C000
G13402699Courtesy of KIA MOTORS AMERICA, INC.
 Used for removing oil pan
