Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
  2. Remove the front seat shield outer cover.

    (Refer to Body - "FRONT SEAT OUTER SHIELD COVER ")

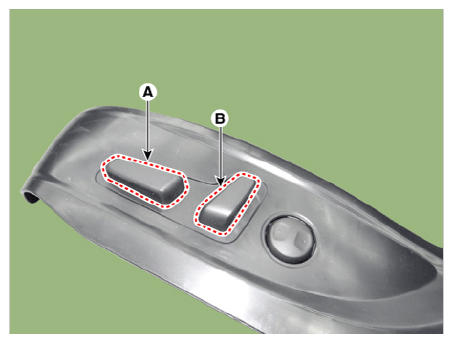

  3. Remove the slide knob (A) and height knob (B).
    G13405533Courtesy of KIA MOTORS AMERICA, INC.

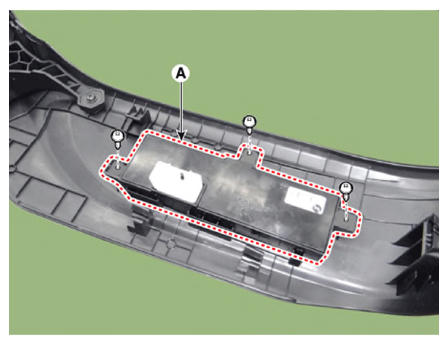

  4. Remove the power seat control switch (A) after loosening the screws.
    G13405534Courtesy of KIA MOTORS AMERICA, INC.
