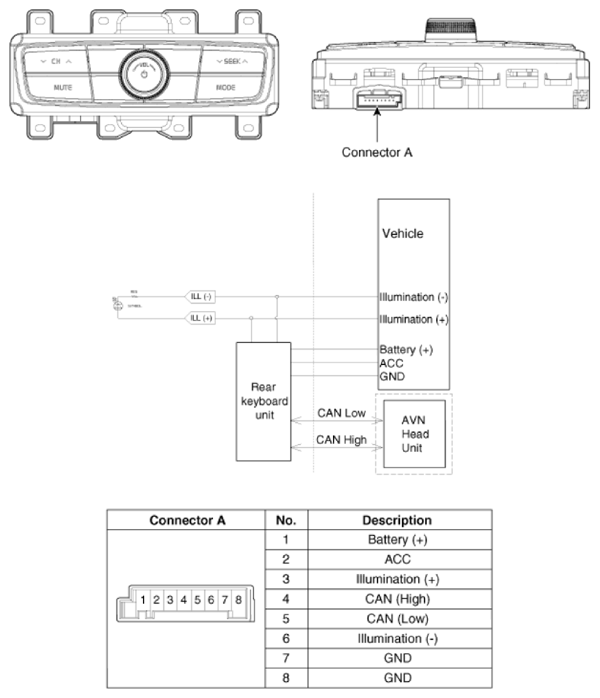

Home >> Kia >> 2020 >> Cadenza Technology >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Audio/AVN System >> Rear Keyboard Unit >> Schematic Diagrams >> Connector And Terminal Function
