Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
  2. Remove the rear back armrest.

    (Refer to Body - "REAR BACK ARMREST ")

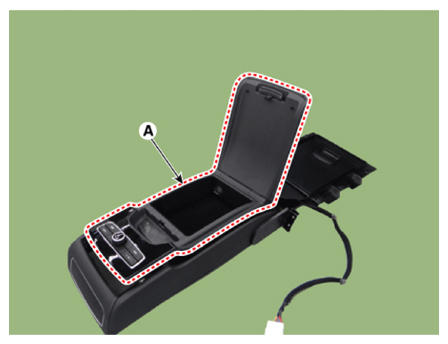

  3. Remove the rear back armrest cover (A) after loosening the screws.
    G13405109Courtesy of KIA MOTORS AMERICA, INC.
    G13405110Courtesy of KIA MOTORS AMERICA, INC.

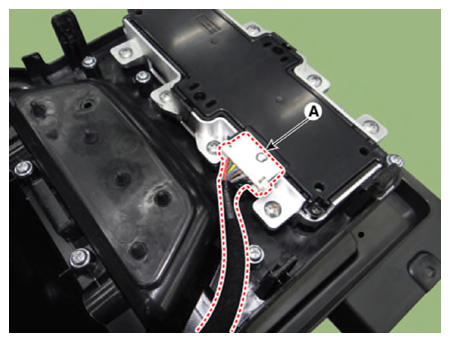

  4. Disconnect the rear keyboard unit connector (A).
    G13405111Courtesy of KIA MOTORS AMERICA, INC.

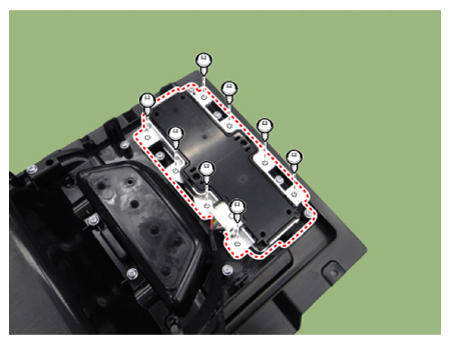

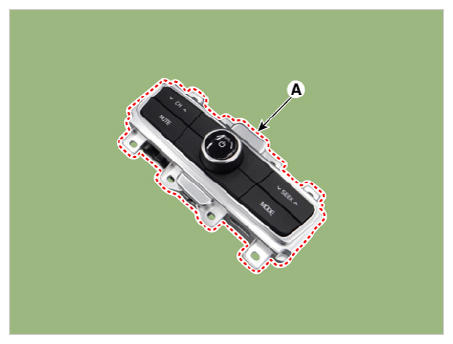

  5. Remove the rear keyboard unit (A) after loosening the screws.
    G13405112Courtesy of KIA MOTORS AMERICA, INC.
    G13405113Courtesy of KIA MOTORS AMERICA, INC.
