Repair Procedures: Replacement

WARNING: This page is about a different car, the 2020 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the driver's shower duct (A) after loosening the screw.
    G12885192Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the smart key unit.

    (Refer to Body Electrical System - "SMART KEY UNIT ")

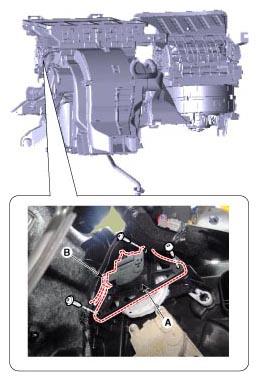

  5. Disconnect the connector (A) and then remove the mode control actuator (B) after loosening the screws.
    G12885193Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
