Repair Procedures: Replacement
WARNING: This page is about a different car, the 2020 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.

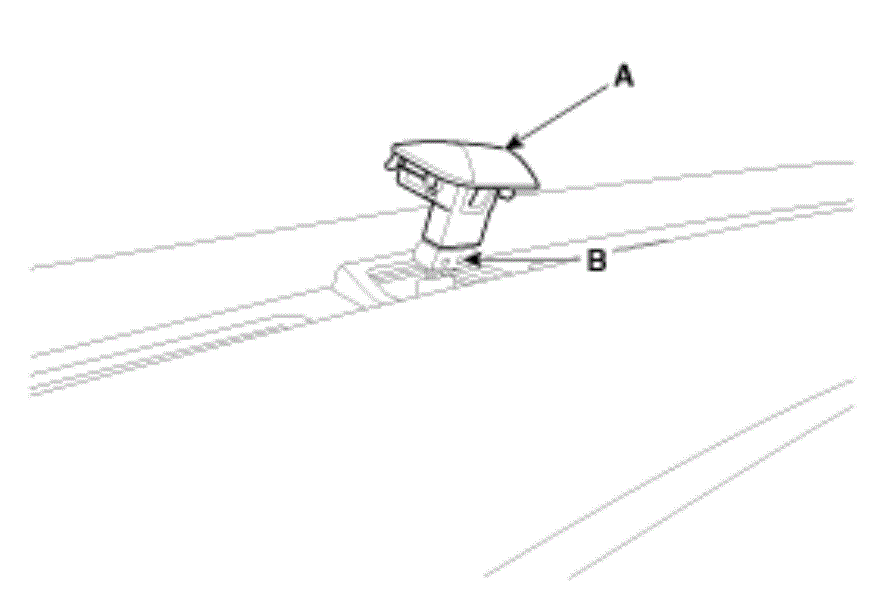

- With a flat-head screwdriver, remove the photo sensor (A) from the center of the defrost nozzle after disconnecting the connector (B).
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Install in the reverse order of removal.
