Compressor-Components & Components Location: Components

WARNING: This page is about a different car, the 2020 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

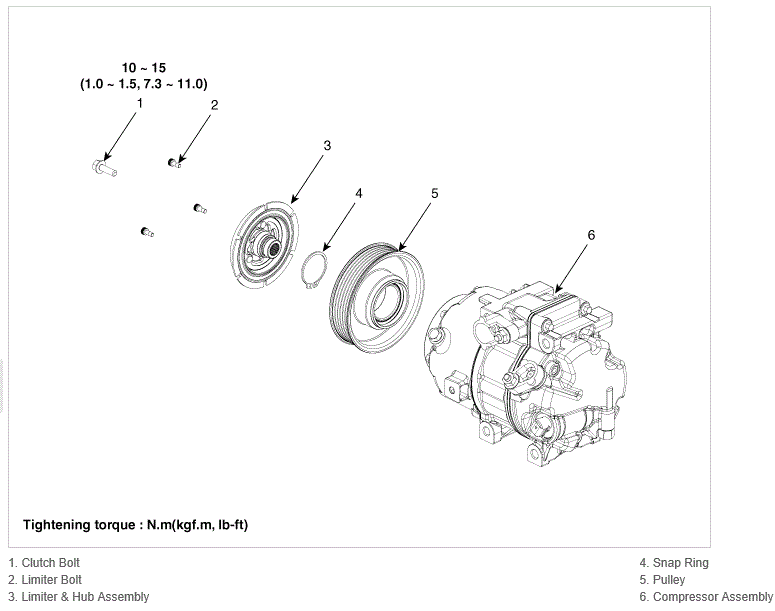

Fig 1: Compressor Components Location With Torque Specification
G13047663Courtesy of KIA MOTORS AMERICA, INC.
