Repair Procedures: Replacement

  1. Remove the Crankshaft damper pulley.

    (Refer to Drive Belt System - " CRANKSHAFT DAMPER PULLEY  ")

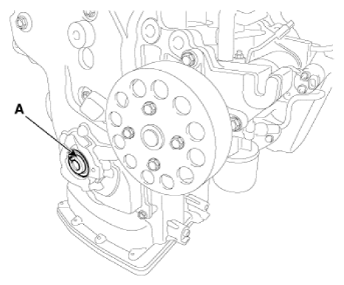

  2. Remove the front oil seal (A).
    G12576280Courtesy of KIA MOTORS AMERICA, INC.

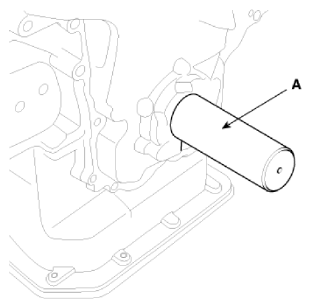

  3. Using the SST (09455-21200) (A), install a new front oil seal.
    G12576281Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Do not reuse the front oil seal.
