Repair Procedures: Removal

  1. Remove the engine room under cover.

    (Refer to Engine and Transaxle Assembly - " ENGINE ROOM UNDER COVER  ")

  2. Drain the engine oil.

    (Refer to Lubrication System - " ENGINE OIL  ")

  3. Using the SST (09215-3C000) and remove the oil pan (A).

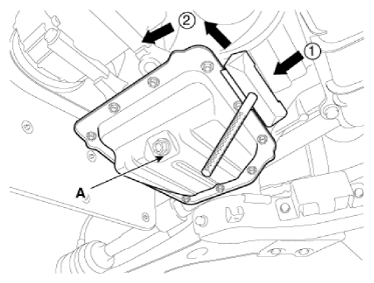

    G12576277Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION:
    • Insert the SST between the oil pan and the ladder frame by tapping it with a plastic hammer in the direction of arrow.
    • After tapping the SST with a plastic hammer along the direction of arrow around more than 2/3 edge of the oil pan, remove it from the ladder frame.
    • Do not turn over the SST abruptly without tapping. It be result in damage of the SST.
