Repair Procedures: Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the steering wheel assembly.

   (Refer to Steering System - " STEERING WHEEL  ")

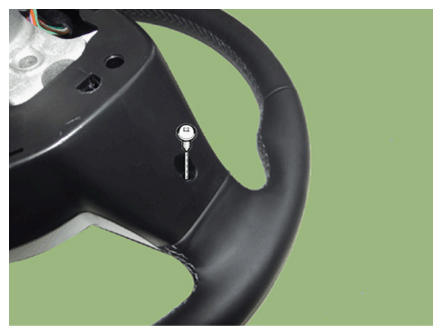

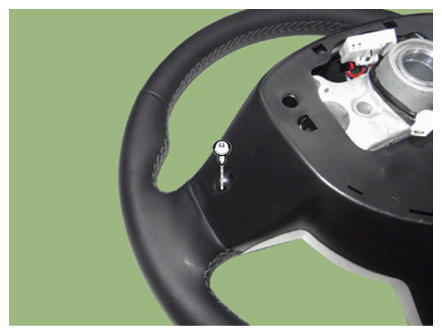

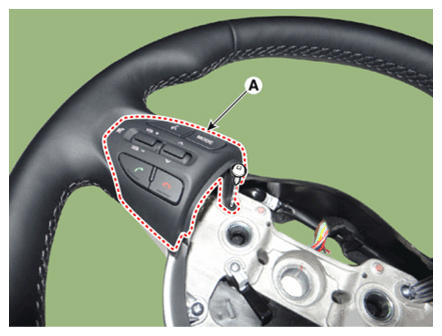

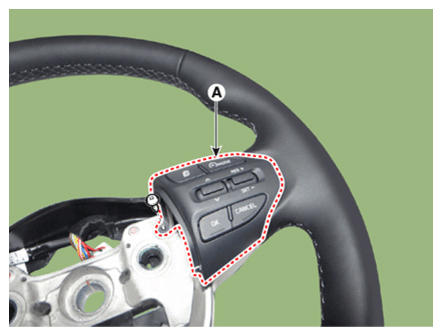

3. Remove the steering wheel remote control (A) after loosening the mounting screws.

   [LH]

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

   [RH]

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

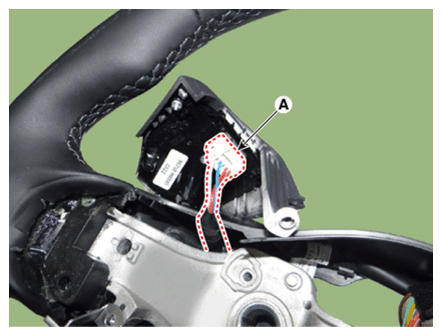

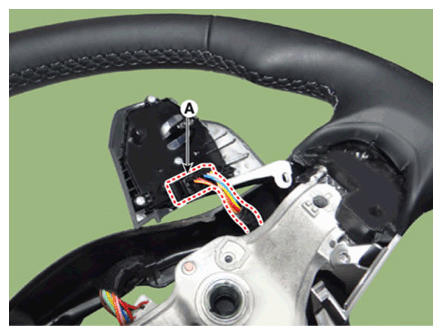

4. Disconnect the steering wheel remote control connector (A).

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.
