Repair Procedures: Inspection

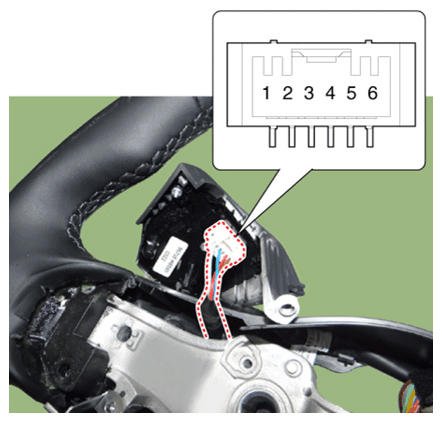

Check the resistance between terminals in each switch position (LH).

G12579739

Courtesy of KIA MOTORS AMERICA, INC.

[LH: Audio + Hands free + Voice]

Switch	Connector terminal	Resistance (±3%)
SEEK Up	1-6	430 Ω
SEEK Down		1.11 kΩ
MODE		2.11 kΩ
MUTE		3.11 kΩ
Volume (+)		4.61 kΩ
Volume (-)		6.81 kΩ
Voice		10.71 kΩ
END		18.91 kΩ
SEND		40.91 kΩ

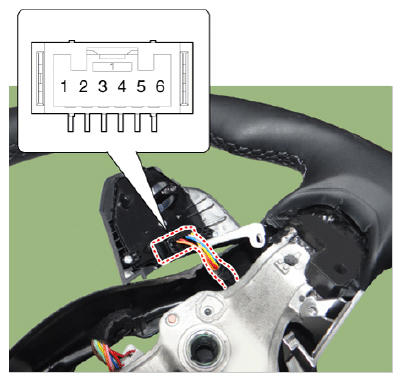

Check for resistance between terminals in each switch position (RH).

G12579740

Courtesy of KIA MOTORS AMERICA, INC.
