Vehicle S/W Management
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON".
|
- Connect KDS/GDS to Data Link Connector (DLC).

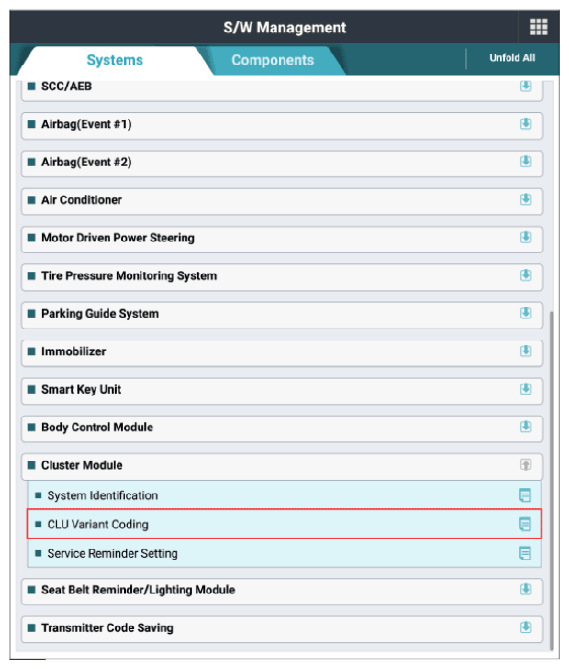

- Perform "Vehicle S/W Management" of concerned component with KDS/GDS.
|
Figures below |
CAUTION:

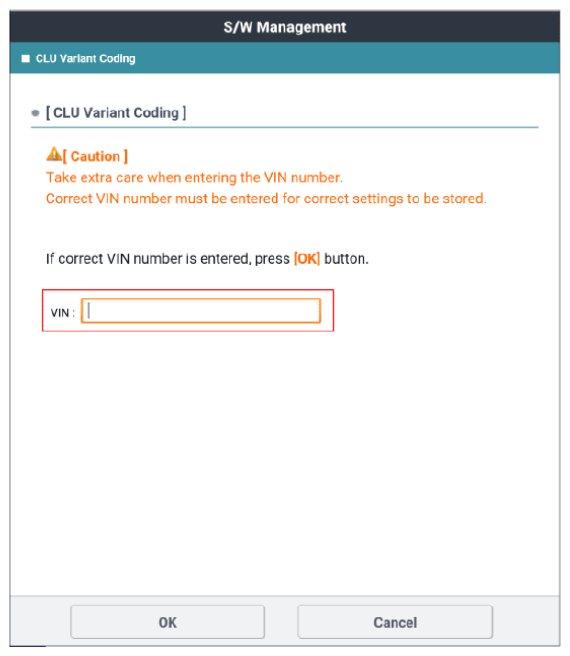

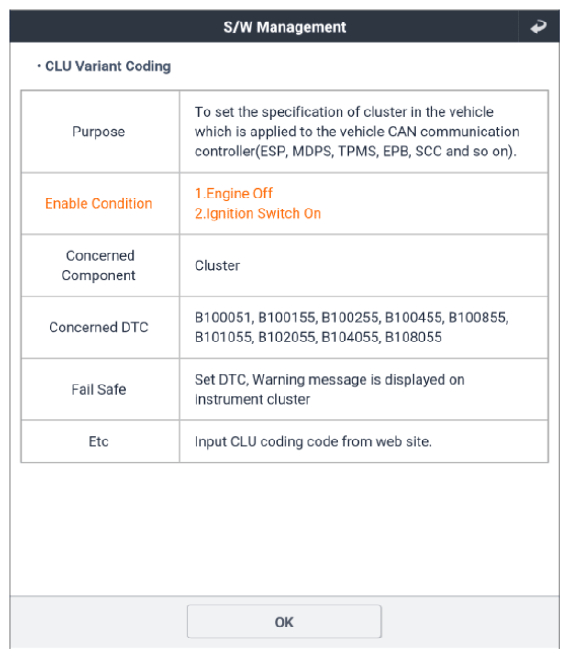

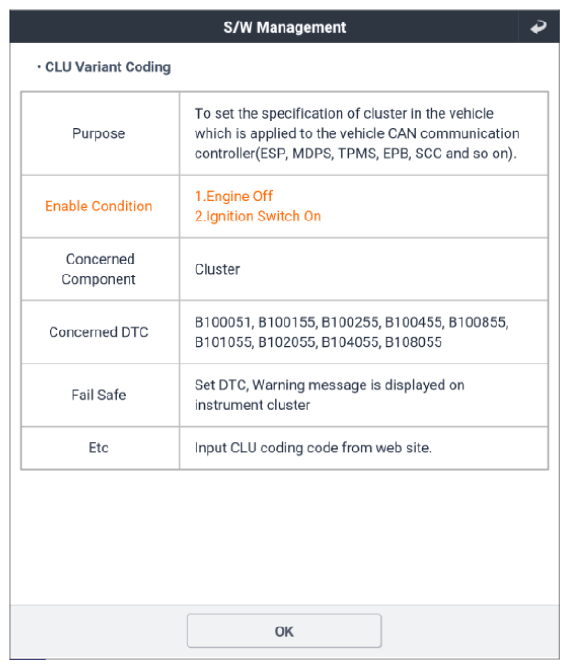

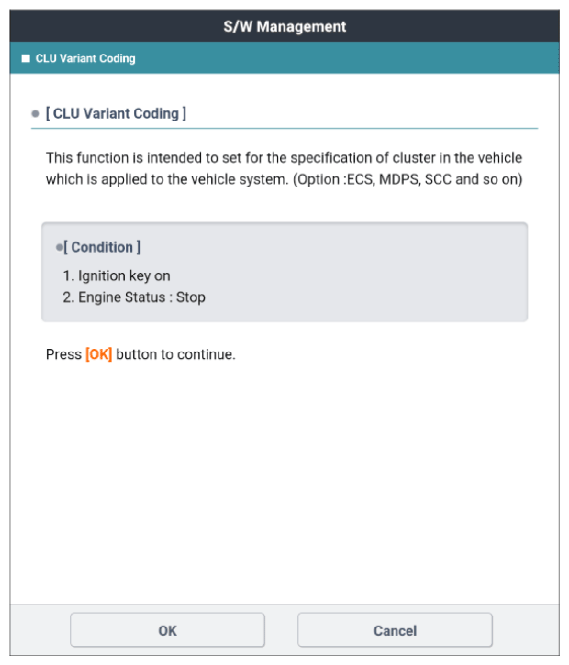

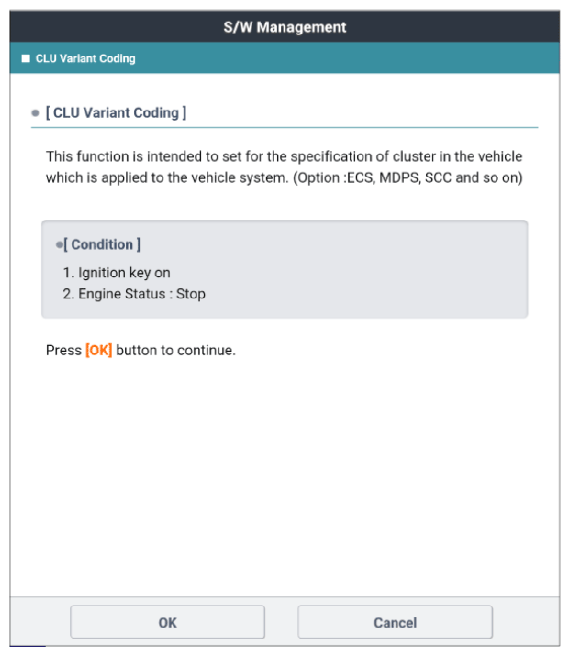

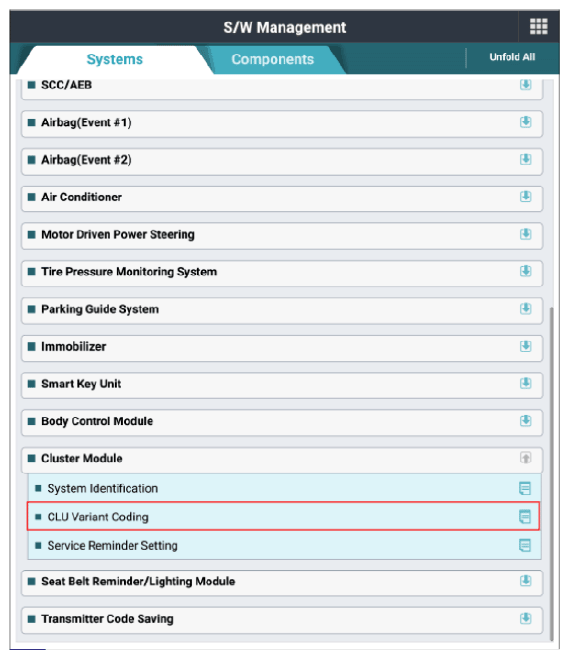

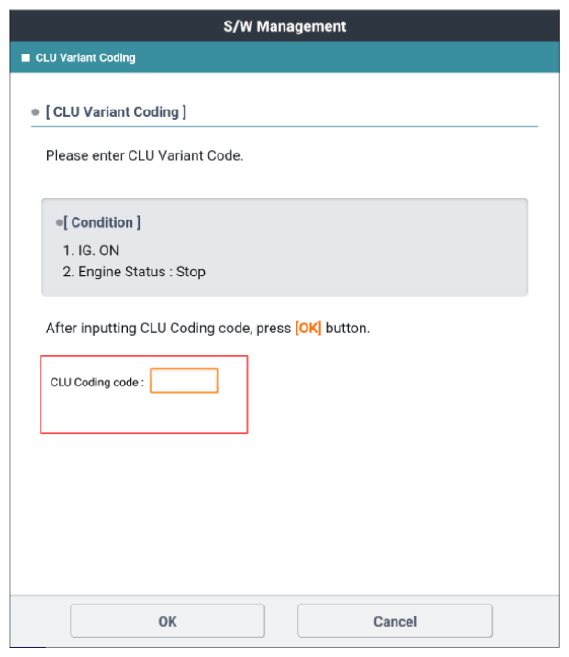

Using KDS/GDS performs the "Vehicle S/W Management" - "CLU Variant Coding" item. The DTC is erased when programming is properly performed.
 Courtesy of KIA MOTORS AMERICA, INC.
|
Figure 1 above
 Courtesy of KIA MOTORS AMERICA, INC.
|
Figure 2 above
 Courtesy of KIA MOTORS AMERICA, INC.
|
Figure 3 above
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
Figure 4 above
 Courtesy of KIA MOTORS AMERICA, INC.
|
Figure 5 above
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
