Home >> Kia >> 2019 >> Optima SX >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System - 2.0L (Except HEV) >> Components & Components Location >> Components

Components & Components Location: Components

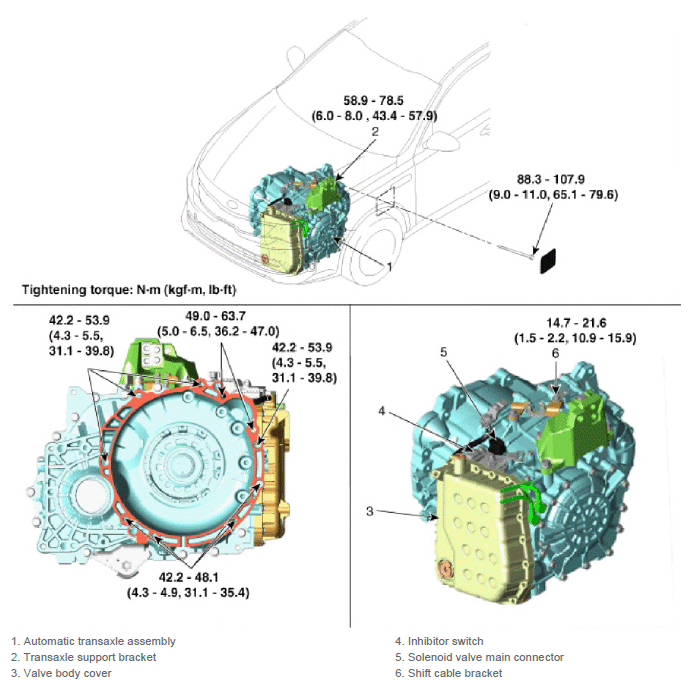

Fig 1: Automatic Transaxle System Components With Torque Specification

G12932161

Courtesy of KIA MOTORS AMERICA, INC.
