Repair Procedures: Replacement

Information

• When removing and installing the hood, work in a group of two or more.

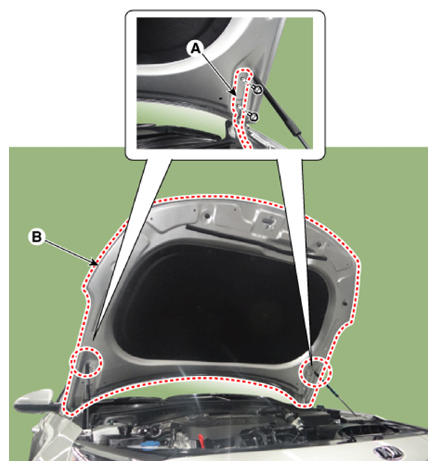

1. After loosening the hood hinge (A) mounting bolts, remove the hood assembly (B).

   Tightening torque:

   21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

2. Install in the reverse order of removal.

   Information

   • Make sure that the hood locks/unlocks and opens/closes properly.
   • Adjust the hood alignment.
