Repair Procedures: Installation

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

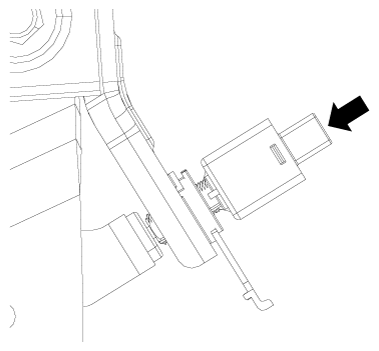

  1. Fix the brake pedal arm and insert fully the stop lamp switch as hiding contact part.
    Fig 1: Inserting Fully Stop Lamp Switch Hiding Contact Part
    G12310085Courtesy of KIA MOTORS AMERICA, INC.

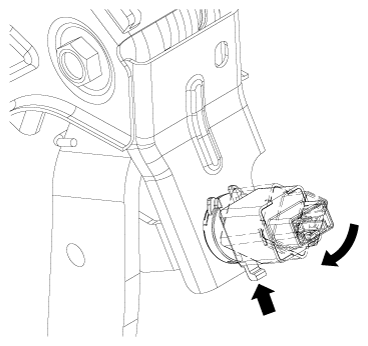

  2. After inserting, turn the stop switch (A) 45° clockwise, and then assemble locking plate (B) by pushing.
    Fig 2: Turning Stop Switch 45° Clockwise
    G12310086Courtesy of KIA MOTORS AMERICA, INC.

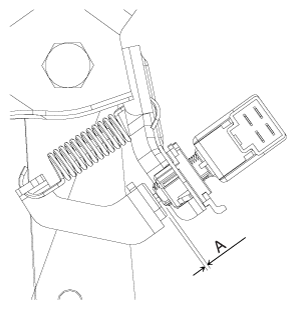

  3. Confirm the gap between stop lamp switch and bracket.

    Stop lamp clearance  : 1.0 - 2.0 mm (0.04 - 0.08 in.)

    Fig 3: Checking Gap Between Stop Lamp Switch And Bracket
    G12310087Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: If the gap between stop lamp switch and bracket is not 1.0 - 2.0mm(0.04~0.08in), perform the above process again.
  4. Connect the stop lamp switch connector.
  5. Install the knee air bag.

    (Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")

  6. Install the lower crash pad.

    (Refer to Body - "CRASH PAD ")
