Section 150 (Lighting System (HEV))
>>
Components And Components Location
>>
Component Location
Component Location
WARNING:
This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.

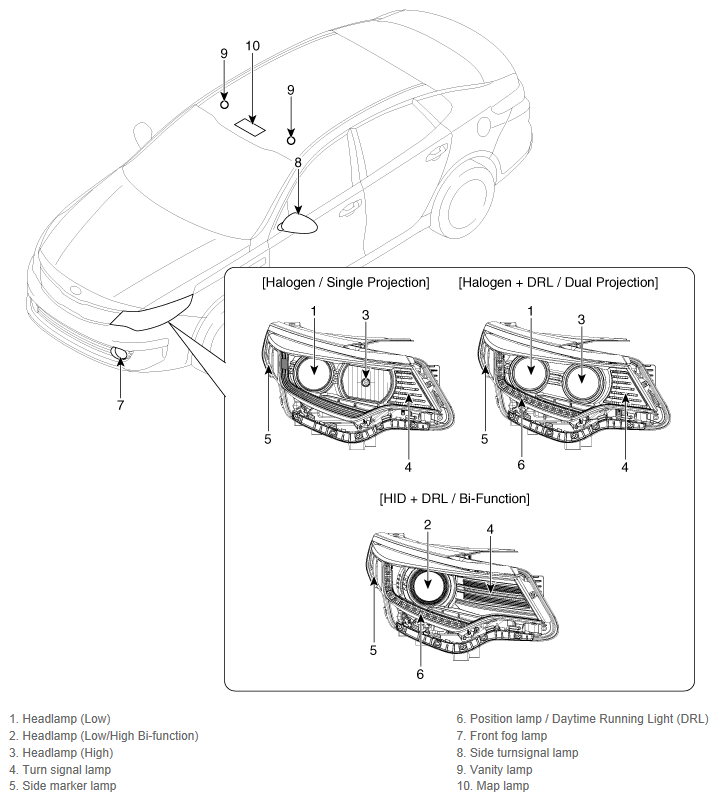

Fig 1: Lighting System Components Location (Headlamp)
Courtesy of KIA MOTORS AMERICA, INC.

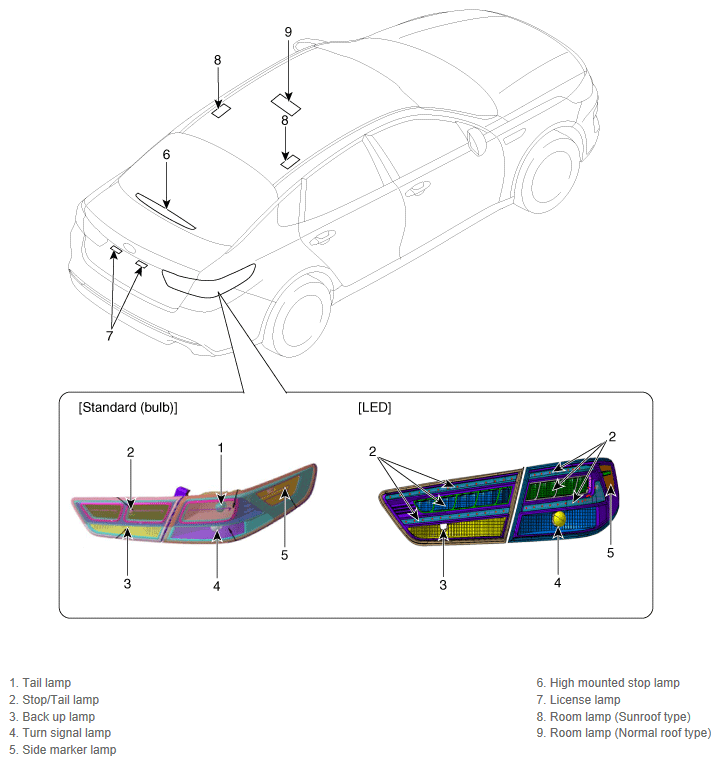

Fig 2: Lighting System Components Location (Tail Lamp)
Courtesy of KIA MOTORS AMERICA, INC.
