Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - " STEERING WHEEL  ")

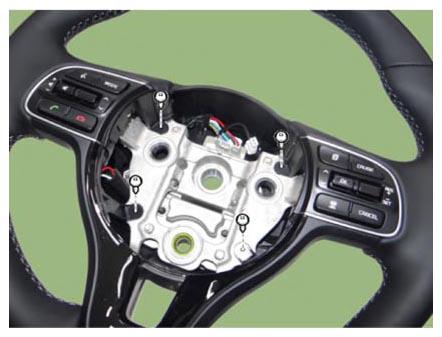

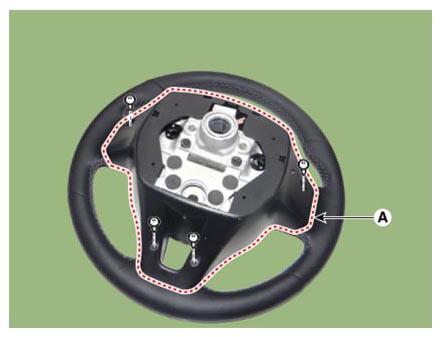

  3. Remove the steering back cover (A) after loosening the mounting screws.
    G12998006Courtesy of KIA MOTORS AMERICA, INC.
    G12998007Courtesy of KIA MOTORS AMERICA, INC.

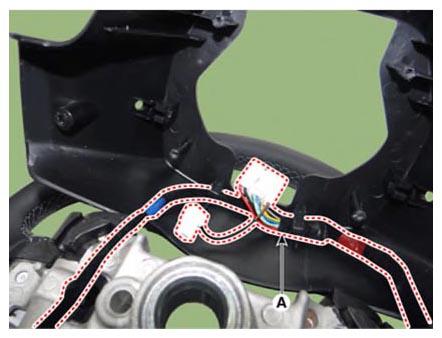

  4. Remove the wiring connector (A) from the steering back cover.
    G12998008Courtesy of KIA MOTORS AMERICA, INC.

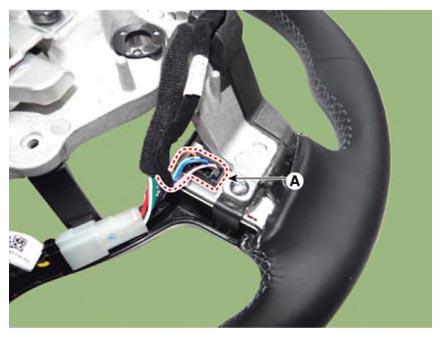

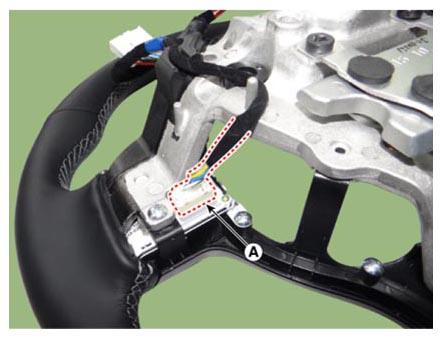

  5. Disconnect the steering wheel remote control connector (A).

    [LH]

    G12998009Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    G12998010Courtesy of KIA MOTORS AMERICA, INC.

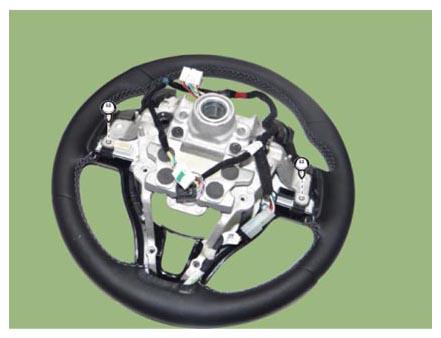

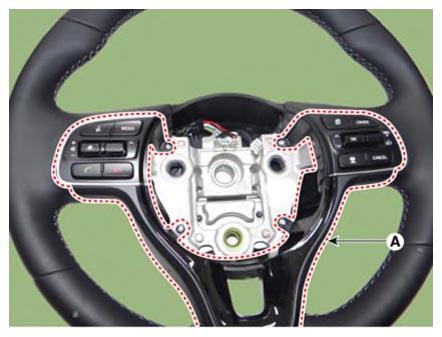

  6. Remove the steering wheel remote control assembly (A) after loosening the mounting screws.
    G12998011Courtesy of KIA MOTORS AMERICA, INC.
    G12998012Courtesy of KIA MOTORS AMERICA, INC.

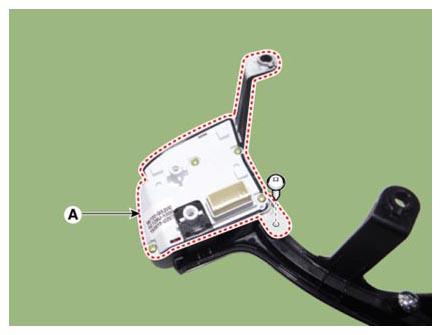

  7. Remove the steering wheel remote control (A) after loosening the mounting screws.
    G12998013Courtesy of KIA MOTORS AMERICA, INC.
