Repair Procedures: Inspection

  1. Switch "OFF" ignition

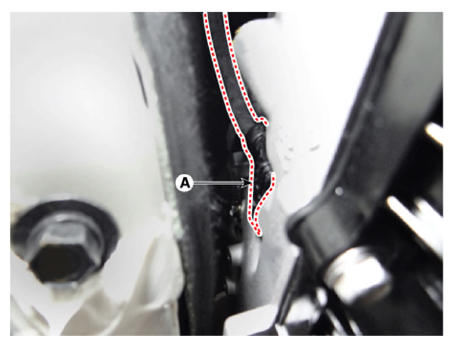

  2. Disconnect the main connector (A).
    G13143844Courtesy of KIA MOTORS AMERICA, INC.
  3. Measure the resistance between power terminal (8) and signal terminal (9).

    Specification:  5.1 ± 0.3 Ω
