Repair Procedures: Replacement

  1. Remove the rear wheel and tire.

    (Refer to Tires/Wheels - "WHEEL ")

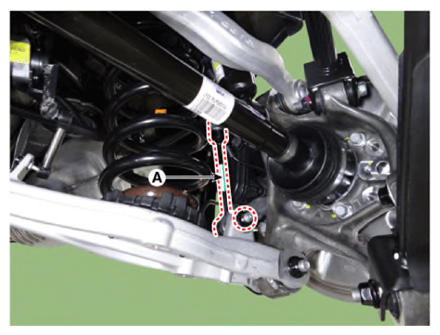

  2. Separate the stabilizer link (A) from the lower arm.

    Tightening torque:

    98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

    G13144409Courtesy of KIA MOTORS AMERICA, INC.

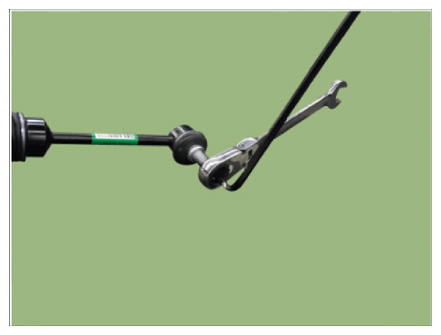

    NOTE: Using a hex wrench, fix the end of stabilizer link when loosening the nut.
    G13144410Courtesy of KIA MOTORS AMERICA, INC.

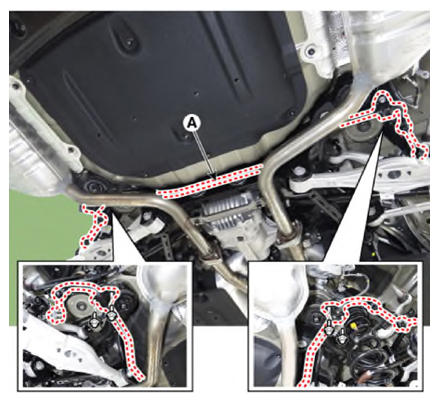

  3. Remove the stabilizer bar (A) from the cross member.

    Tightening torque:

    49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

    G13144411Courtesy of KIA MOTORS AMERICA, INC.

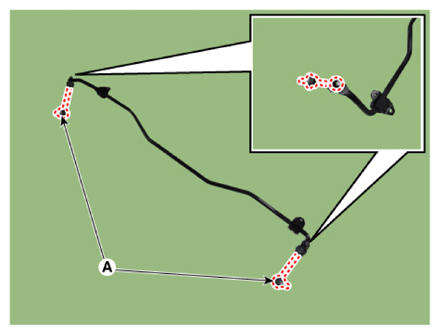

  4. Remove the stabilizer bar links (A) from the stabilizer bar.

    Tightening torque:

    98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

    G13144412Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Using a hex wrench, fix the end of stabilizer link when loosening the nut.
    G13144413Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.
