Repair Procedures: Replacement

CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the front seat assembly.

    (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

  2. Remove the front seat shield outer cover.

    (Refer to Front Seat - "FRONT SEAT SHIELD OUTER COVER ")

  3. Remove the front seat shield inner cover.

    (Refer to Front Seat - "FRONT SEAT SHIELD INNER COVER ")

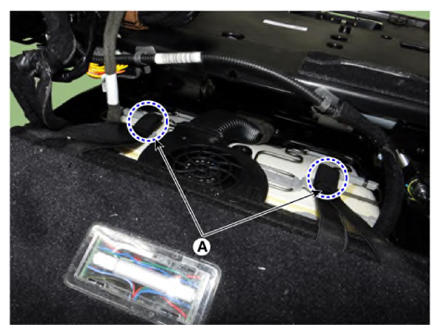

  4. Remove the front seat lower protector (A).
    G13128290Courtesy of KIA MOTORS AMERICA, INC.

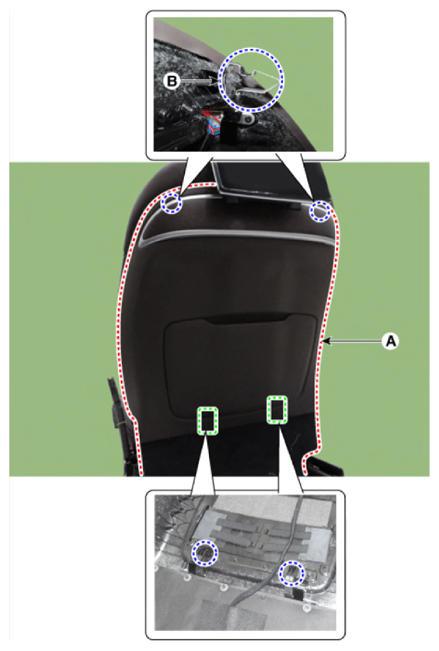

  5. Remove the front seat back board (A).
    1. Separate the upper back cover by pushing the lock pin (B) in the direction of the arrow.
    2. Remove the front seat back cover by lifting in the direction.
    G13128291Courtesy of KIA MOTORS AMERICA, INC.

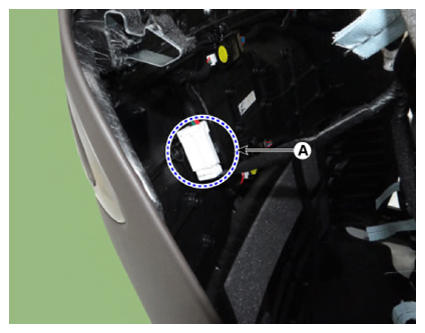

  6. Disconnect the front seat back board connector (A).
    G13128292Courtesy of KIA MOTORS AMERICA, INC.

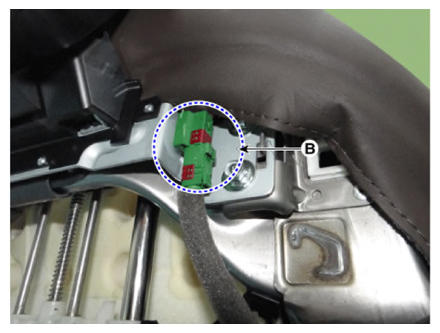

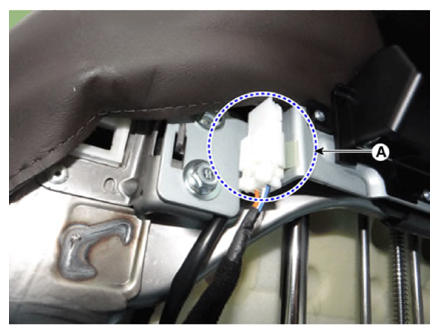

  7. Disconnect the rear monitor connector (A) and rear monitor cable (B).
    G13128293Courtesy of KIA MOTORS AMERICA, INC.
    G13128294Courtesy of KIA MOTORS AMERICA, INC.

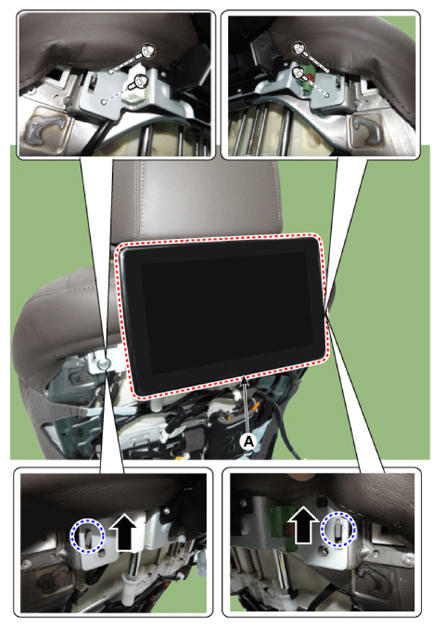

  8. After loosening the mounting bolts, remove the rear monitor assembly (A).
    G13128295Courtesy of KIA MOTORS AMERICA, INC.

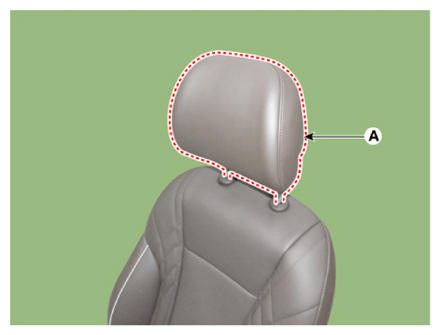

  9. Remove the headrest (A).
    G13128296Courtesy of KIA MOTORS AMERICA, INC.

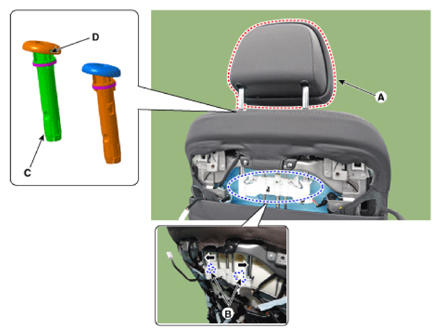

    * How to remove the headrest

    1. Push the mounting clip (B) of the headrest in the direction of the arrow.
    2. Release the 'LOCK' state by inserting the sharp-pointed tool into the hole (D) located at the upper side of the headrest guide (C) and then remove the headrest (A) in the direction of the arrow.
    G13128297Courtesy of KIA MOTORS AMERICA, INC.

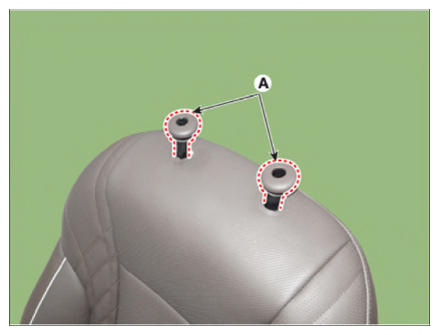

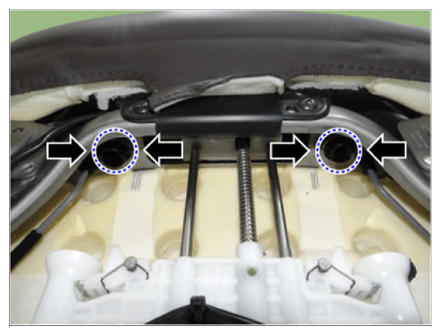

  10. Using a screwdriver or remover, remove the front seat headrest guides (A) by pulling them upwards.
    G13128298Courtesy of KIA MOTORS AMERICA, INC.
    G13128299Courtesy of KIA MOTORS AMERICA, INC.

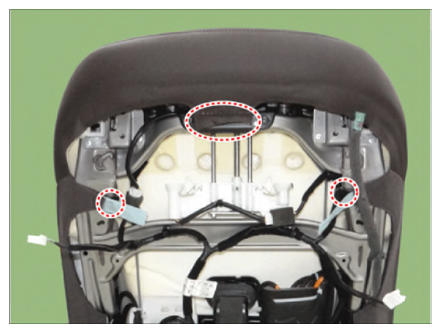

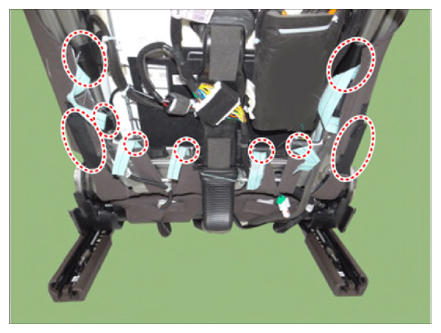

  11. Remove the protector from the front seat back frame.
    G13128300Courtesy of KIA MOTORS AMERICA, INC.
    G13128301Courtesy of KIA MOTORS AMERICA, INC.

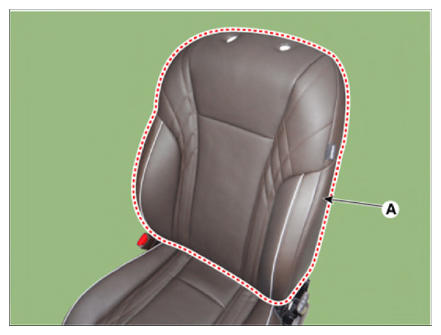

  12. Remove the front seat back cover assembly (A) from the front seat back frame.
    G13128302Courtesy of KIA MOTORS AMERICA, INC.

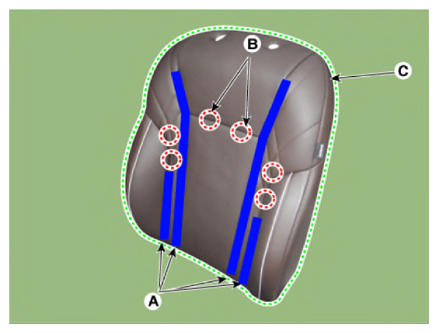

  13. After removing the Velcro tape (A) and hog-ring clips (B) on the front of seat back and remove the front seat back cover (C).
    CAUTION: Make sure that the sponge insert wire is not dislocated.
    G13128303Courtesy of KIA MOTORS AMERICA, INC.
  14. To install, reverse the removal procedure.

    Information

    • Make sure that the connectors are connected completely
    • Replace any damaged clips.

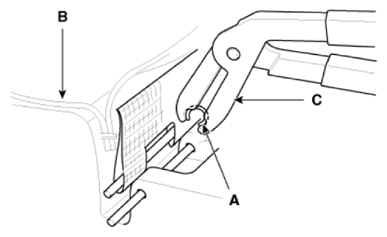

    • To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A).
    • Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).
    G13128304Courtesy of KIA MOTORS AMERICA, INC.
