Power Latch and Power Cinching Inspection

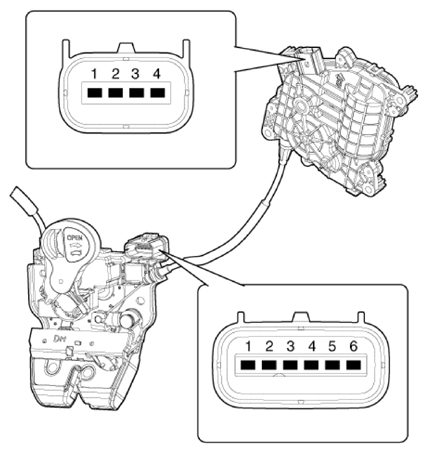

  1. Disconnect the connector from the power latch and power cinching.
    G13128962Courtesy of KIA MOTORS AMERICA, INC.

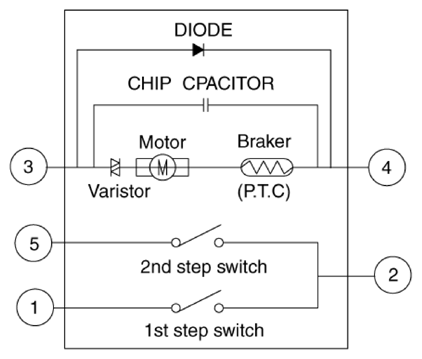

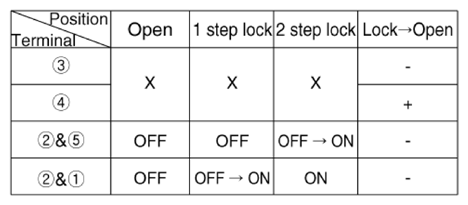

  2. When the battery power is supplied to the latch connector as shown in the table below. and check the power latch for correct operation.
    G13128963Courtesy of KIA MOTORS AMERICA, INC.
    G13128964Courtesy of KIA MOTORS AMERICA, INC.

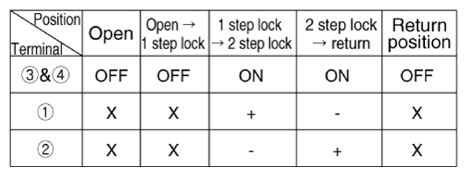

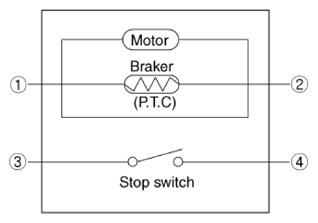

  3. When the battery power is supplied to the cinching actuator connector as shown in the table below and check the power cinching for correct operation.
    G13128965Courtesy of KIA MOTORS AMERICA, INC.
    G13128966Courtesy of KIA MOTORS AMERICA, INC.
